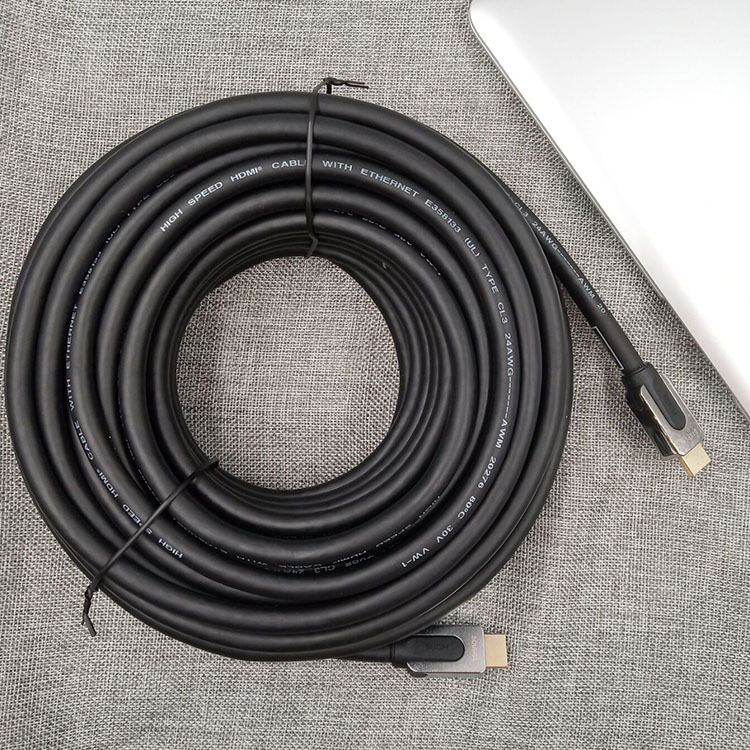

Active HDMI 2.0 Cable with Zinc alloy connector ,For 10-15m Long-Distance Transmission ,Ultra HD 4K@60Hz 4:4:4, , Chip-Enhanced Signal for Home Theater, Gaming, and Professional AV Systems

Overview:

The Active HDMI 2.0 Cable with Zinc alloy connector is a high-performance cable designed to meet the demands of modern home theaters, gaming setups, and professional AV systems. Unlike standard copper cables, which suffer from signal degradation beyond 7 meters and are limited to 4K@30Hz, or 4k 60hz 4:2:0 this cable features an integrated chip within the connector that ensures stable 4K@60Hz 4:4:4 signal transmission over long distances (up to 15 meters). The Zinc alloy connector offers superior durability and corrosion resistance, while the chip-enhanced design guarantees minimal signal loss, making it ideal for high-resolution video and audio transmission. Whether you're gaming, streaming, or setting up a professional AV system, this Active HDMI 2.0 cable delivers unmatched performance and reliability, even over extended distances.

Key Features:

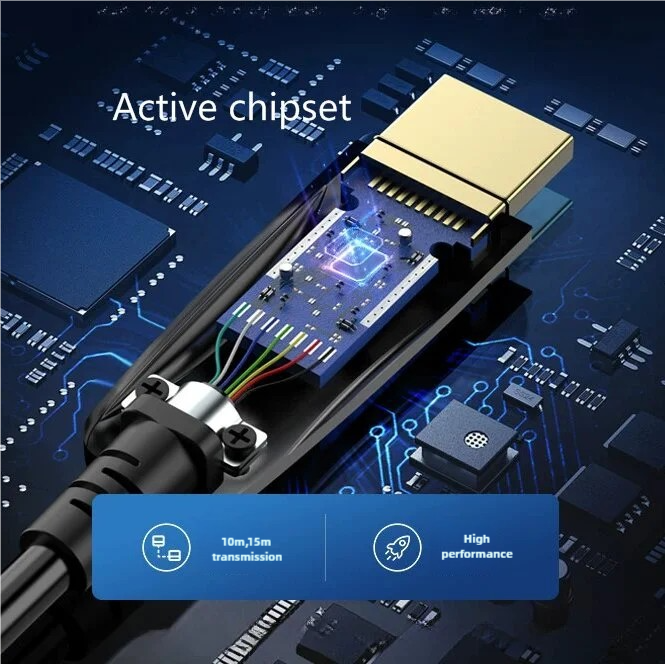

• Active HDMI 2.0 Support: Chip-enhanced for long-distance 4K@60Hz 4:4:4 signal transmission, ensuring flawless video and audio quality.

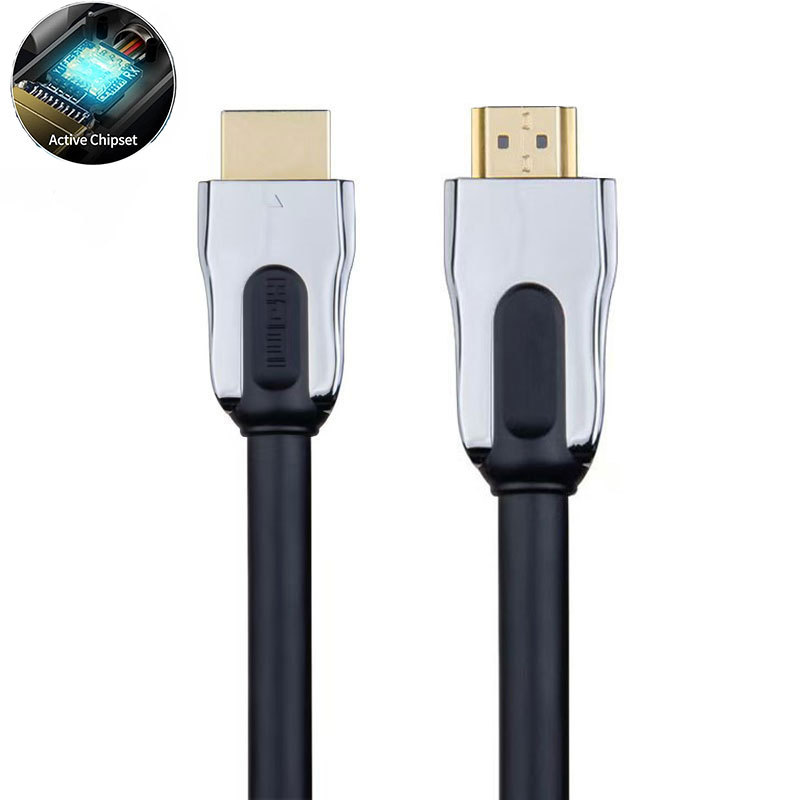

• Zinc alloy Connector: Provides enhanced durability and corrosion resistance, ensuring long-lasting performance even with frequent use.
• Chip-Enhanced Signal: Overcomes the limitations of standard copper cables, supporting 4K@60Hz 4:4:4 over distances up to 15 meters without signal degradation.
• HDR and ARC Support: Supports (HDR10) for richer colors and deeper contrasts, and Audio Return Channel (ARC) for high-quality audio transmission.

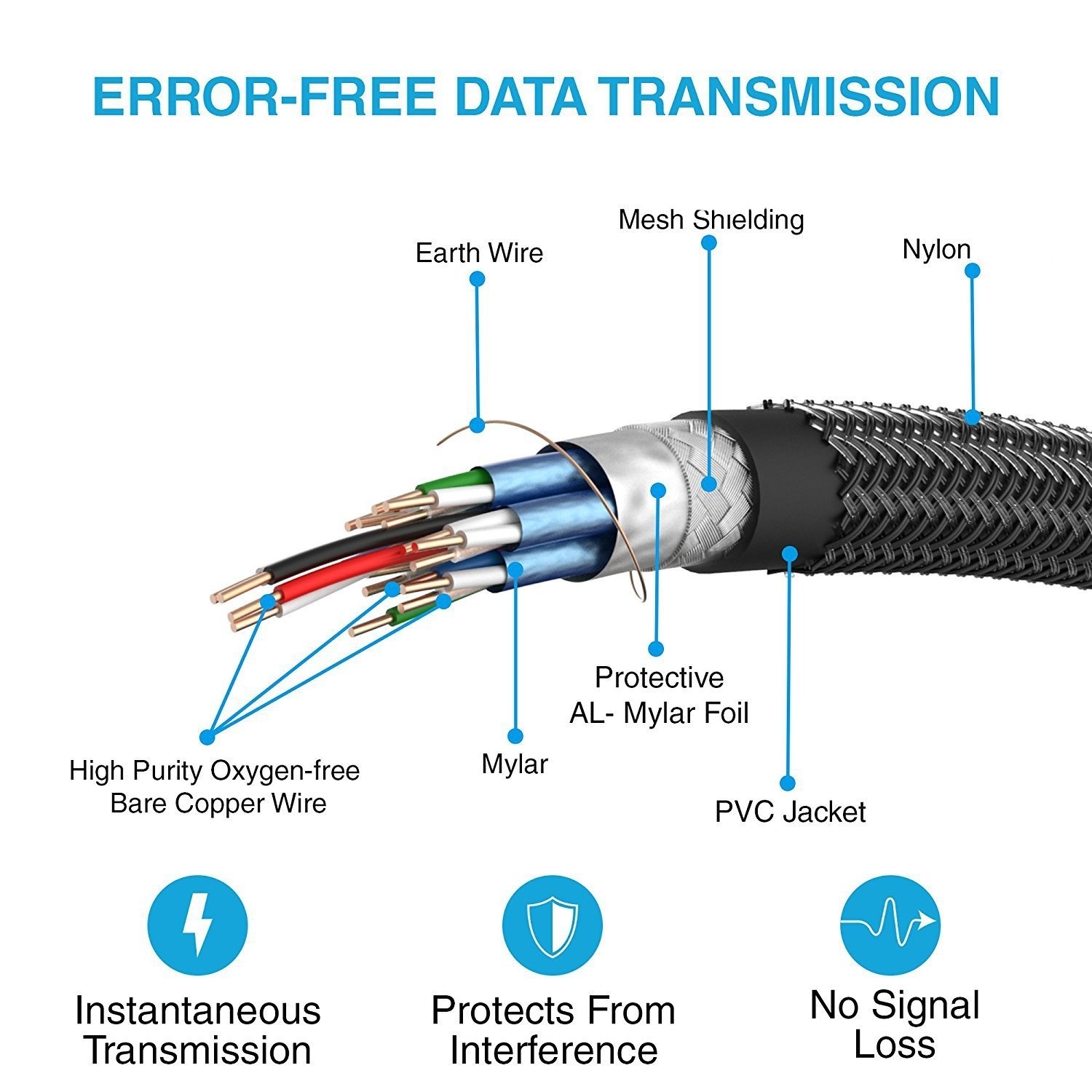

• Solid  OFC Conductor & Triple-Layer Shielding:Solid (OFC) conductor combined with triple-layer shielding (braided, foil, and aluminum) ensures maximum signal purity and minimal interference, even in high-noise environments
• Backward Compatible: Fully compatible with previous HDMI versions (1.4, 1.3, etc.), ensuring seamless integration with older devices.
• PASS SL-881 ATC Test: Meets rigorous testing standards, ensuring reliable performance and compliance with industry benchmarks.

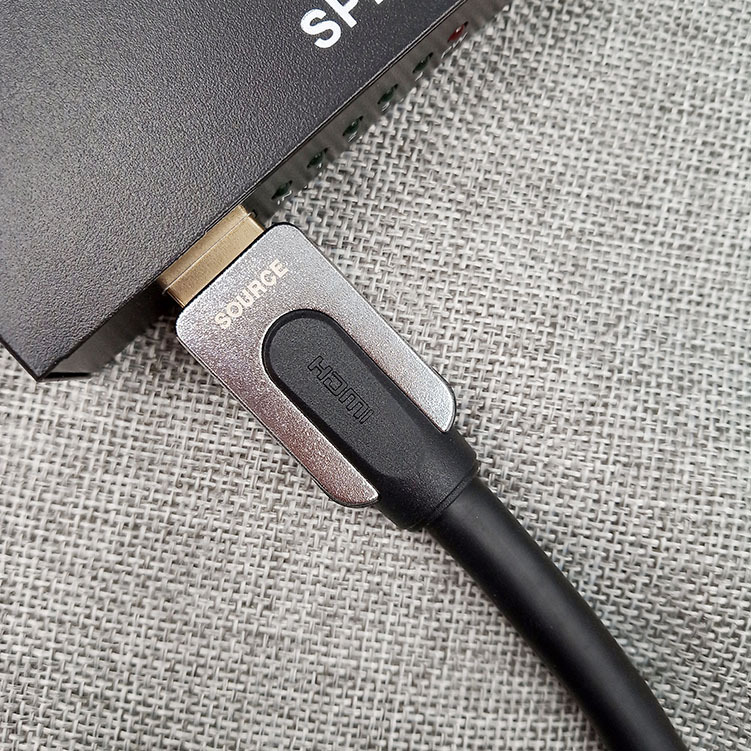

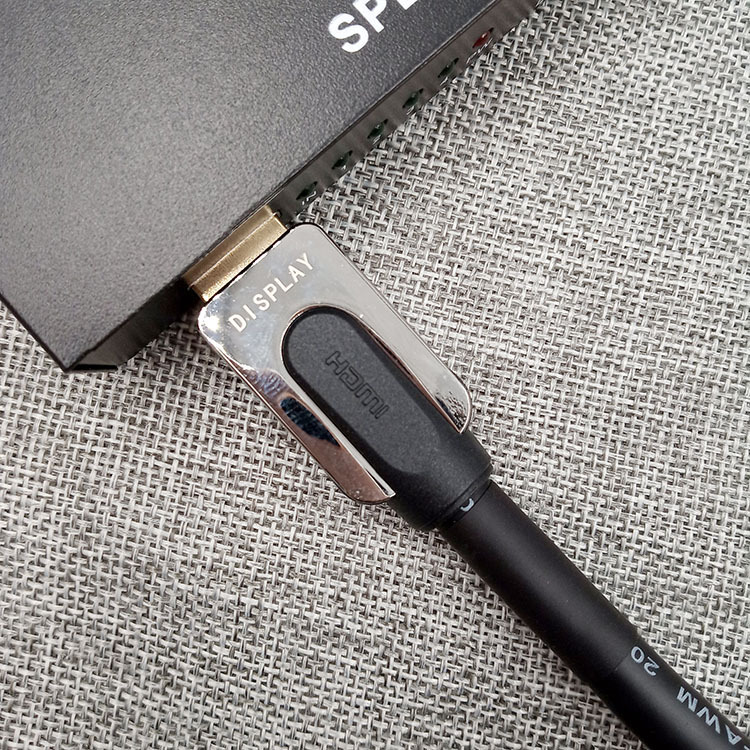

• Note :This cables is directional, with one end specifically labeled "SOURCE" and the other "DISPLAY," ensuring they must be connected in the correct orientation and cannot be reversed.

Specifications:

• HDMI version: HDMI 2.0
• Connector Type: HDMI A male to A male (Zinc alloy)
• Conductor: OFC Conductor
• Cable Length: 10m, 15m
• AWG:  10m/26awg, 15m/24awg
• Shielding: Triple-layer shielding (braided, foil, and aluminum)
• Cable diameter:  OD8.0mm/26awg, OD9.0mm/24awg
• Bandwidth: 18Gbps
• Resolution Support: 4K@60Hz 4:4:4, 1080p@120Hz
• HDR Support: Yes ,HDR10
• ARC Support: Yes
• Other support: HDCP2.2
• Cable Material: PVC Jacket
• Connector Material: Zinc alloy
• Color: Black (other colors available upon request)
• Operating Temperature: -20°C to +70°C
• Certification:  PASS SL-881 ATC Test

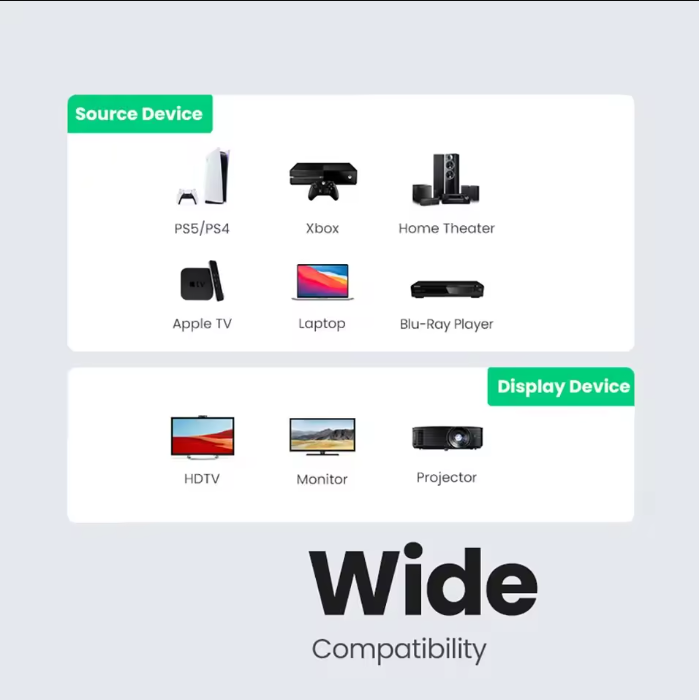

Compatibility:

• Home Theater Systems: Perfect for connecting 4K TVs, soundbars, and AV receivers for an immersive cinematic experience.
• Gaming Consoles: Ideal for gaming consoles like PlayStation 4 and Xbox One, delivering high refresh rates and low latency.
• Professional AV Setups: Suitable for high-end AV systems in conference rooms, studios, and live events.
• PC and Laptop Connectivity: Connect your PC or laptop to 4K monitors or projectors for ultra-high-definition displays.

Applications:

• Long-Distance Transmission: Ideal for setups requiring long cable runs (up to 15 meters) without signal loss, such as home theaters, conference rooms, and live events.
• Gaming: Ensures low latency and high refresh rates for an immersive gaming experience.
• Professional AV: Suitable for high-resolution video and audio transmission in professional environments.
• Home Entertainment: Perfect for connecting 4K TVs, soundbars, and other home theater components.

Product Basics

1. What is an Active HDMI 2.0 Cable, and how does it differ from a Passive HDMI cable?
Active HDMI 2.0 cables contain built-in signal boosters that allow for longer-distance transmission without signal degradation. Passive HDMI cables rely only on physical wiring and are recommended for short lengths, typically under 5 meters.

2. Is the Active HDMI 2.0 Cable directional? How should I connect it?
Yes. Active HDMI 2.0 cables are directional and labeled with “Source” and “Display” on the connectors. Reversing the connection may result in no signal or display errors.

Technical Specifications

3. Can Active HDMI 2.0 Cables support 4K resolution at 60Hz with full 4:4:4 chroma?
Yes. These cables support uncompressed 4K@60Hz 4:4:4 chroma sampling, providing sharp visuals with accurate color representation.

4. What bandwidth does an Active HDMI 2.0 Cable support?
Active HDMI 2.0 cables support up to 18Gbps bandwidth, which is sufficient for 4K video at 60Hz, HDR content, and immersive audio formats.

5. What wire gauge and shielding technology do Active HDMI 2.0 Cables use?
Our 15-meter cables use 24AWG oxygen-free copper, and 10-meter cables use 26AWG. Both feature triple-layer shielding (individual foil, full aluminum foil, and braided copper) to ensure signal integrity and reduce EMI/RFI interference.

Compatibility & Performance

6. What is the difference between Active HDMI 2.0 Cable and Active Fiber Optic HDMI Cable?
Active HDMI 2.0 cables use copper conductors and electrical boosters, suitable for up to 15 meters. Fiber optic HDMI cables convert signals to light, allowing stable transmission over 100 meters or more with minimal loss, ideal for professional or commercial setups.

7. Are Active HDMI 2.0 Cables compatible with HDR and HDCP 2.2 content?
Yes. They fully support HDR10 and HDCP 2.2, ensuring smooth playback of protected 4K UHD streaming and Blu-ray content.

8. Does the Active HDMI 2.0 Cable support Dolby Atmos and DTS:X audio formats?
Yes. These cables transmit high-definition audio formats including Dolby TrueHD, Dolby Atmos, and DTS:X, delivering cinema-grade sound with compatible systems.

Installation & Use Cases

9. Can I use an Active HDMI 2.0 Cable for ceiling-mounted projectors or long-distance TV installations?
Absolutely. These cables are designed for long runs such as wall-mounted TVs and ceiling-mounted projectors, maintaining stable 4K@60Hz performance over 10–15 meters.

10. What is the maximum reliable length of an Active HDMI 2.0 Cable?
Active HDMI 2.0 cables are most effective up to 15 meters (approx. 50 feet). For longer runs, fiber optic HDMI cables or HDMI 2.1 solutions are recommended.

11. Can I use an Active HDMI 2.0 Cable for ARC or eARC audio return channel?
They support ARC (Audio Return Channel), but not eARC. For eARC compatibility, choose an HDMI 2.1 certified cable.

12. Can Active HDMI 2.0 Cables be used with gaming consoles like PS5 and Xbox Series X?
Yes. They are fully compatible with PS5, Xbox Series X, and other next-gen gaming systems, supporting 4K@60Hz, HDR, and low-latency output.

Quality & Testing

13. Are Active HDMI 2.0 Cables certified by HDMI Licensing LLC or meet industry standards?
Our cables are not HDMI Premium Certified but are tested to meet HDMI 2.0 standards. Each unit undergoes SL-881 eye pattern testing to verify stable 18Gbps performance with 4K@60Hz 4:4:4 chroma.

14. How do you test your Active HDMI 2.0 Cables?
Every cable is tested twice: first on a real 4K UHD TV for visual integrity, then using the Simplay SL-881 eye pattern analyzer — an advanced signal quality test used by top-tier labs. Many factories skip this step due to lack of equipment.

How to Choose Your Right HDMI 2.0 Cable?

HDMI 2.0 cables may look similar on the outside, but internal materials and specifications make a big difference in performance, certification, and price. Chinese factories typically work on same margins—the real cost variation comes from raw materials and specification.

It is influenced by these 8 aspects: Please compare the price based on same spec .

1. Do You Need Non-Standard 14+1 or Standard 19+1 Structure?

• 14+1 Non-Standard: Reduced 5 core wires, only suitable for very short lengths. May cause compatibility issues with some devices. Some cheap cables on the market use this structure.
• 19+1 Standard: Full HDMI 2.0 compliance, recommended for all lengths and professional use.

🟡 Recommendation:

• Cost Ranking: 14+1 < 19+1
• Market Preference: 19+1 is the most common choice for reliable performance. 14+1 is only considered for very cost-sensitive projects where compatibility risk is acceptable.

2. Do You Need EMI Shielding Inside the Plug?

• Ordinary Inner Mold: Basic shielding for general use.
• Copper Foil: Enhanced EMI protection, reduces interference.
• Tinplate: Premium shielding for high-performance environments.

🟡 Recommendation:

• Cost Ranking: Ordinary < Copper Foil < Tinplate
• Market Preference: Ordinary inner mold is standard for most applications. Copper Foil or Tinplate are only specified when required for premium certified cables or special EMI-sensitive environments.

3. What Type of Connector Housing Do You Need?

• Molding: Basic one-piece plastic, cost-effective but limited durability.
• ABS: Stronger plastic with better heat/impact resistance.
• Aluminum Shell: Improves EMI shielding and heat dissipation.
• Zinc Alloy: Premium metal case with superior durability.

🟡 Recommendation:

• Cost Ranking: Molding < ABS < Aluminum < Zinc Alloy
• Market Preference: Molding is the most common and economical choice. Aluminum and Zinc Alloy are reserved for high-end professional applications.

4. Which Plug Type Best Suits Your Needs?

• Standard HDMI A to A: Works with all standard HDMI ports.
• Snug-Fit A to A: Tighter grip for stable connection. Available for selected models only.

🟡 Recommendation:

• Cost Ranking: Standard < Snug-Fit
• Market Preference: Standard connectors are widely used, while Snug-Fit adoption is growing in commercial installations where secure connections are critical.

5. Do You Have a Special Request for Gold Plating?

• Standard Gold (0.5–1μm): Basic protection for daily use.
• 3μm Gold: Thicker layer for stronger corrosion resistance. Optional and rarely requested.

🟡 Recommendation:

• Cost Ranking: Standard < 3μm
• Market Preference: Standard gold plating satisfies requirements for majority of applications.

6. What Conductor Material Do You Prefer?

• CCS (Copper-Clad Steel): Budget-friendly but higher resistance.
• Solid Bare Copper: Stable signal, lower loss.
• Stranded Tinned Copper: Flexible and durable for high-end cables.we use it for Ultra slim hdmi2.0 and Fiber optic hdmi2.0

🟡 Recommendation:

• Cost Ranking: CCS < Solid Copper < Stranded Tinned Copper
• Market Preference: Solid Copper offers best balance for most applications. CCS is cheaper (especially in 14+1 configuration) is the most budget-conscious option.

7. Do You Need Premium Certified or Non-Certified Cables?

• Non-Certified: Only pass 4K TV image test. Lower AWG,supports 4K@60Hz 4:2:0 only beyond 3m – a compressed color format that lowers bandwidth.

• Structure Example:1–3M: 30AWG/ 5–7.5M: 28AWG / 8–10M: 26AWG/ 15M: 24AWG

• Advantage: Lower cost and basic 4K compatibility for TVs and home use.
• Limitation: Not suitable for full-bandwidth content like high-end gaming or professional displays.

• Certified (Pass Simplaylabs 881 Eye patten test):True 4K , High AWG, Uses thicker conductors, ensures full HDMI 2.0 compliance with 18Gbps bandwidth. Supports 4K@60Hz 4:4:4 – uncompressed format with full color fidelity.

• Structure Example:1–3M: 30AWG/ 5M: 26AWG/ 10M: 26AWG + CHIP/ 15M: 24AWG + CHIP

• Advantage: Guarantees full color depth, sharper text, stable signal in demanding applications like gaming monitors, 4K editing setups, or professional AV.

🟡 Recommendation:

• Cost Ranking: Non-Certified < Certified Or (30AWG< 28AWG<26AWG<24AWG)
• Market Preference: Certified cables are mandatory for professional applications. Non-certified are common in consumer markets where cost is primary concern.

8. What Outer Jacket Material Do You Prefer?

• PVC: Basic flexible jacket.
• CL3-Rated PVC: Fire-resistant for in-wall use (Note: required for lengths exceeding 5m when specially requested).
• Nylon Braided: Premium tangle-free surface.
• Cotton Mesh: Soft-touch luxury option.

🟡 Recommendation:

• Cost Ranking: PVC < CL3 PVC < Nylon < Cotton
• Market Preference: PVC is standard for most applications. CL3 is specified for in-wall installations over 5m. Nylon braided and cotton mesh is for high end .

Why Choose Us

• Certified for All Lengths (1M–5M): Few HDMI factories in China are certified for multiple cable lengths.

• Official Supplier to MONSTER CABLE: We manufacture 4K and 8K HDMI cables for MONSTER CABLE.

Final Step
To help us recommend the best HDMI 2.0 cable:

• Specify your preferences for each feature, OR

• Share your target price for optimized configuration.

We're ready to provide a customized solution tailored to your needs.

HDMI 2.0 Cable Quality Control
Professional Assurance for High-Definition AV Applications

1. Real-World 4K Image Test

2. Real-World PS5 Testing

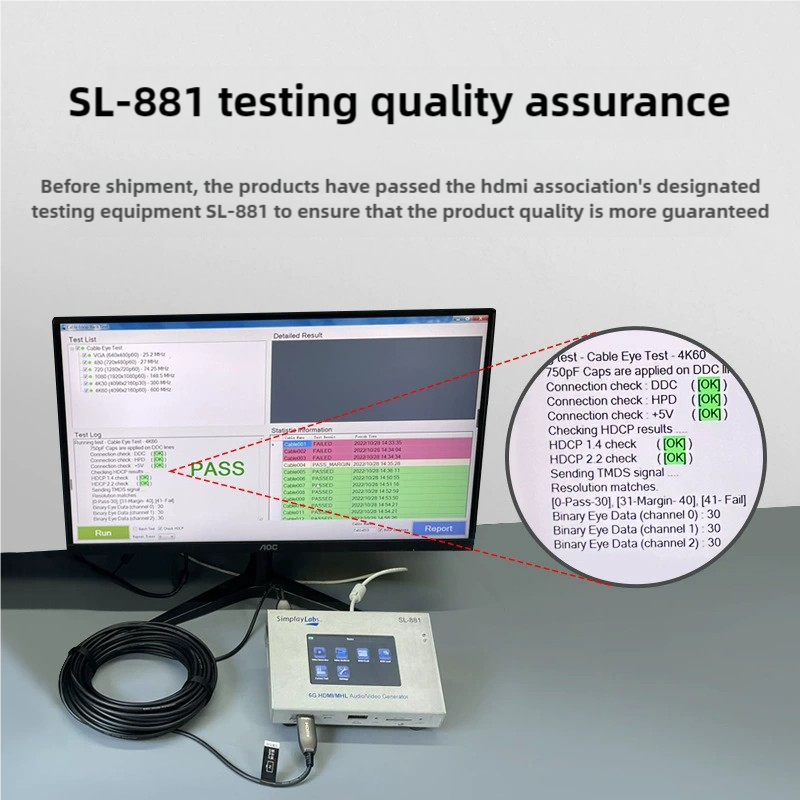

3. SimplayLabs SL-881 Eye Diagram Testing

1. What is your MOQ (Minimum Order Quantity)?

A: Standard MOQ is 300pcs per model for active hdmi cable .we accept smaller trial orde for new buyers

2. What is the lead time for bulk orders?

A: 25-30 days after payment confirmation (depending on order size and customization).

3. Do you offer free samples?

A: Free samples are available for bulk-order buyers, but shipping costs are charged.

4. What are your payment terms?

A: T/T (30% deposit, 70% before shipment).

5. What is your packaging option?

A: Custom packaging (Polybag, blister, retail box, eco-friendly) is available.

6. Which shipping methods do you support?

A: By sea (FCL/LCL), air freight, or express (DHL/FedEx/UPS) for urgent orders.

7. Do you provide warranty?

A: Yes, we provide replacement for defective products.

8. Can you ship to my country?

A: We ship globally and handle customs documentation (INCOTERMS: FOB, CIF, or EXW).

9. Do you provide OEM/ODM services?

A: Yes, we offer custom branding, packaging, and cable specifications (length, connectors, etc.) for bulk orders.

10. How can I request a quote?

A: Email us with your specifications (length, quantity, packaging, etc.) for a detailed quotation.

Ready to discuss your order? Contact us with your requirements for a tailored solution!
