High-Quality CAT7 S/FTP PVC Cable 305m - Reliable Shielded Ethernet Cable with Bare Copper for 10G Networks

Overview:

The CAT7 S/FTP Normal PVC Cable is a high-performance Ethernet cable designed for modern networking environments that demand high-speed data transmission and superior interference protection. It supports 10 Gigabit Ethernet (10GbE) speeds over distances of up to 100 meters, making it ideal for data centers, enterprise networks, and high-performance office environments. The cable is constructed with 23AWG Bare Copper (BC) conductors, ensuring excellent conductivity, durability, and signal integrity. Its Shielded Foiled Twisted Pair (S/FTP) design provides maximum protection against electromagnetic interference (EMI) and crosstalk, ensuring reliable data transmission even in high-interference environments. The PVC jacket offers flexibility and durability, making it suitable for indoor installations. This cable is perfect for users seeking a high-quality, shielded solution for ultra-fast and reliable network connectivity.

Key Features of CAT7 S/FTP Normal PVC Cable:

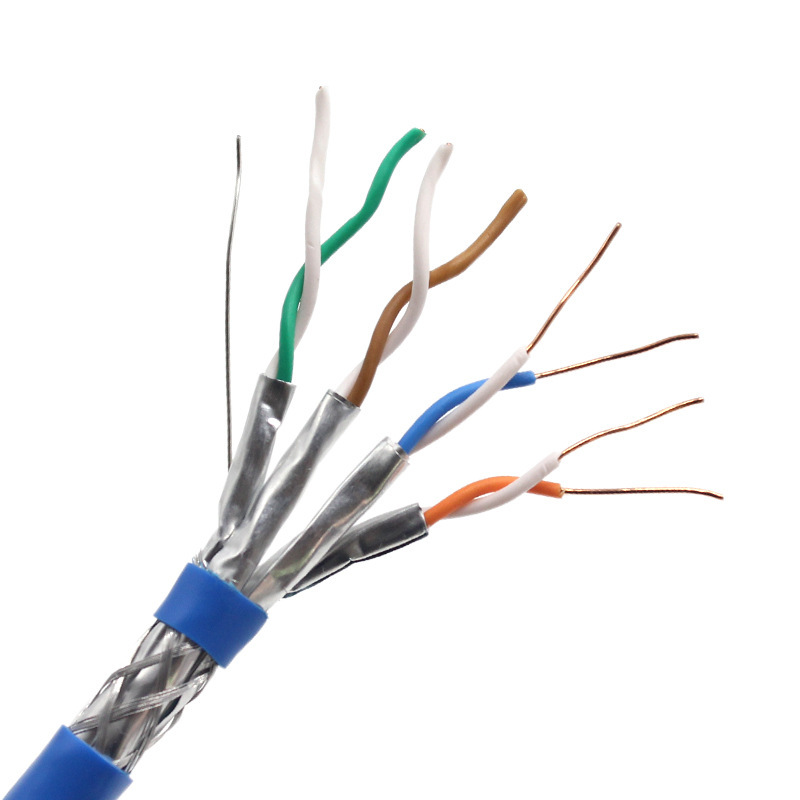

• 23AWG Bare Copper (BC) Conductor
  The cable features 23 American Wire Gauge (AWG) solid bare copper conductors, providing excellent conductivity, durability, and performance. The bare copper ensures optimal signal integrity and supports high-speed data transmission.
• 600 MHz Bandwidth
  With a bandwidth of 600 MHz, the cable supports 10 Gigabit Ethernet (10GbE)networks and other bandwidth-intensive applications, making it suitable for high-performance environments.

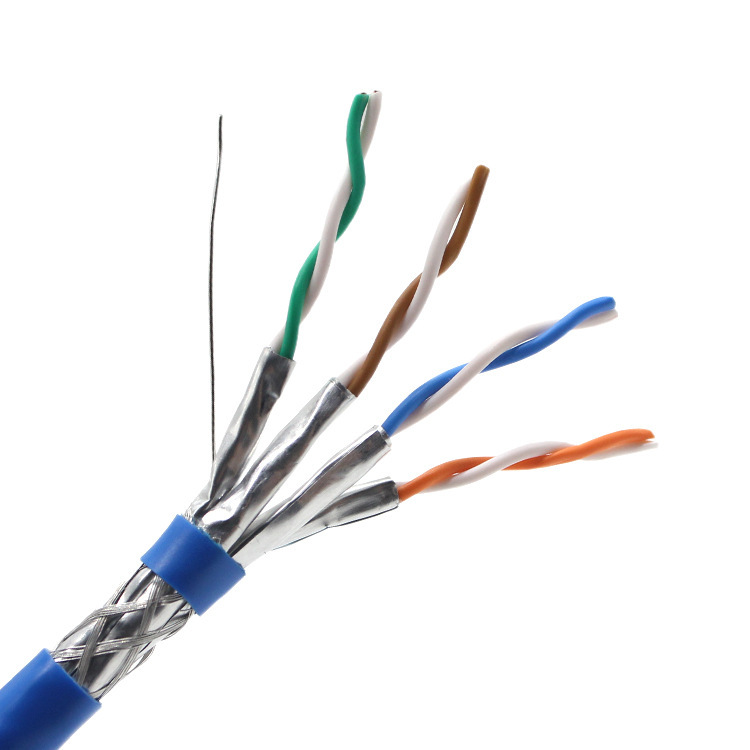

• Shielded Foiled Twisted Pair (S/FTP) Design
  The S/FTP constructionincludes individual foil shielding for each twisted pair and an overall braided shield, providing maximum protection against electromagnetic interference (EMI) and crosstalk. This ensures stable and reliable data transmission in high-interference environments.
• PVC Jacket
  The cable is sheathed in a durable PVC jacket, providing flexibility and protection against physical damage. It is suitable for indoor use in data centers, offices, and enterprise networks.
• Fluke Test passed
  The cable is rigorously tested and certified to pass Fluke tests, ensuring compliance with industry standards for performance and reliability. This certification guarantees that the cable meets the highest benchmarks for Cat7 performance.

Specifications:

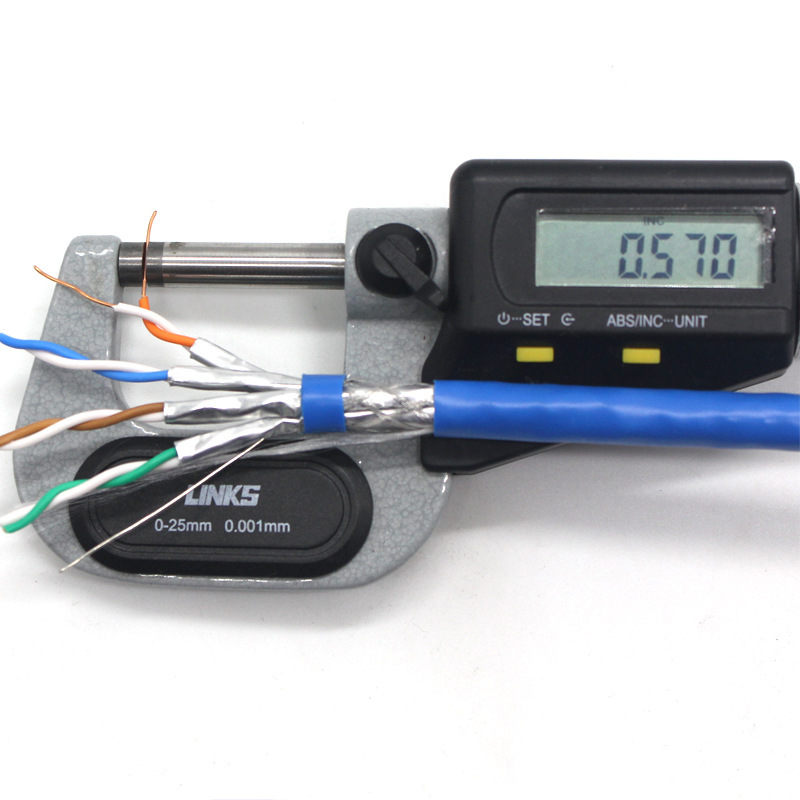

• Conductor:23AWG 1/0.57 BC (Bare Copper)
• Shielding:S/FTP (Shielded Foiled Twisted Pair)

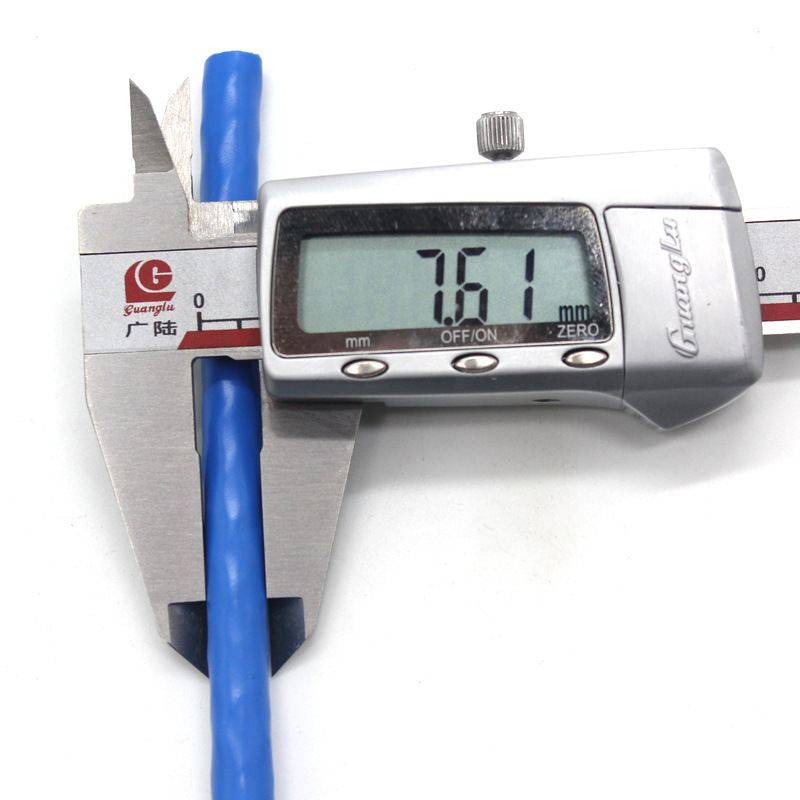

• Outer Diameter (OD):7.6mm
• Jacket Material:Normal PVC
• Jacket Color:Blue (other colors available upon request)
• Indoor/Outdoor:Indoor
• Bandwidth:600 MHz
• Compliance:ISO/IEC 11801, TIA/EIA-568-C.2

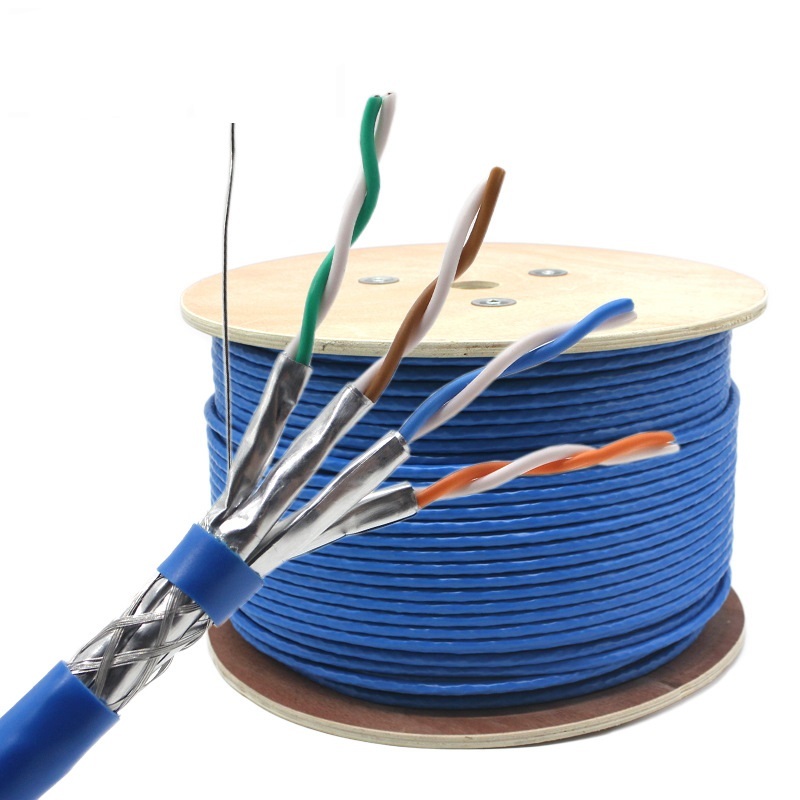

• Package:Wooden spool
• Length:305m
• Installation Temperature:0°C to +50°C
• Operation Temperature:-20°C to +60°C
• Installation Min Bend Radius:80mm
• Operating Min Bend Radius:50mm

Applications:

• Data Centers:Ideal for high-speed data transmission in data centers where maximum performance and interference protection are required.
• Enterprise Networks:Perfect for connecting servers, switches, and other network devices in large office environments.
• High-Performance Offices:Suitable for high-bandwidth applications such as video conferencing, large file transfers, and cloud computing.
• Indoor Installations:Designed for indoor use, making it perfect for office buildings, schools, and residential installations.

1. What is CAT7 cable and how does it differ from CAT6A?
CAT7 (Class F) supports 10Gbps up to 100m and operates at 600MHz bandwidth, with stricter shielding (S/FTP) than CAT6A. Key differences:

• CAT7 uses GG45/TERA connectors (backward-compatible with RJ45)

• Better Alien Crosstalk (ANEXT) suppression

• Less standardized than CAT6A (ISO/IEC 11801-3 vs. TIA for CAT6A)

2. Is CAT7 backward compatible with CAT5e/CAT6 devices?
Yes, but with limitations:

• Works with RJ45 ports but max speed limited by lowest category in the link

• May require hybrid patch cords for GG45-to-RJ45 connections

• Shielding may need grounding for optimal performance

3. What are the shielding types for CAT7?
Only S/FTP (Shielded/Foiled Twisted Pair) is standard:

• Individual foil-shielded pairs

• Overall braided shield

• Requires proper grounding to prevent EMI interference

4. What is the maximum speed and distance for CAT7?

• 10Gbps at 100m (standard)

• 25Gbps/40Gbps at 50m (with compatible equipment)

• 100Gbps at 15m (non-standard, requires perfect termination)

5. Does CAT7 support PoE applications?
Yes, fully supports:

• PoE+ (802.3at, 30W)

• PoE++ (802.3bt, 90W)

• Superior heat dissipation vs. lower categories due to shielding

6. Why does CAT7 use GG45/TERA connectors instead of RJ45?
GG45/TERA connectors:

• Support 600MHz+ bandwidth (RJ45 maxes at ~500MHz)

• Have 4 additional contact points for cross-compatibility

• Required for full CAT7 performance (though RJ45 adapters exist)

7. Can CAT7 be used for outdoor installations?
Only with:

• UV-resistant jackets (PE or LSZH)

• Waterproof gel filling for direct burial

• Proper grounding of shields to prevent lightning damage

8. What are the main applications of CAT7 cable?

• Data centers (high-density 10G/25G links)

• Industrial automation (EMI-resistant)

• Military/government secure networks

• Future-proofing for 25G/40G upgrades

9. Is CAT7 worth the extra cost over CAT6A?
Only for specific needs:
✅ Justified for:

• High EMI environments (factories, hospitals)

• 25Gbps+ future-proofing

• Mission-critical latency-sensitive apps
  ❌ Overkill for:

• Standard office 10G networks

• Residential use

• Short-distance PoE devices

10. What certifications should authentic CAT7 have?

• ISO/IEC 11801-3 Ed.2 (Class F)

• Fluke DSX-8000 test reports for channel performance

11. How does bending radius affect CAT7 performance?
Stricter than CAT6A:

• Minimum bend radius = 8x cable diameter

• Sharp bends can:

  • Disrupt shield continuity

  • Increase insertion loss

  • Cause impedance mismatches

12. Are all CAT7 cables pure copper?
Beware of:
⚠️ CCA (Copper-Clad Aluminum):

• Fails PoE applications (overheating risk)

• Higher resistance (signal degradation)

• Brittle conductors (breaks during installation)
  ✔️ Require 100% bare copper (23AWG preferred)

13. What's the price difference between CAT7 and CAT6A?
Approximately 30-60% higher due to:

• More copper in conductors

• Complex shielding construction

• Specialized connectors (GG45)

• Lower production volumes

Fluke Network Cable Testing: Permanent Link (90m) vs. Channel (100m) – Which Standard is Stricter?

In structured cabling certification, Fluke Networks testing devices (e.g., DSX series) evaluate both Permanent Link (90m) and Channel (100m) according to standards like TIA/EIA-568 or ISO/IEC 11801.

1. Key Differences

• Permanent Link (90m)

  • Tests only the fixed infrastructure (patch panel → horizontal cable → outlet).

  • More stringent limits for parameters (e.g., Insertion Loss, NEXT, Return Loss).

  • Ensures the installed cabling can support additional patch cords while maintaining performance.

• Channel (100m)

  • Tests the end-to-end path, including patch cords (equipment → patch panel → outlet → device).

  • Looser limits because patch cords introduce extra loss and crosstalk.

  • Represents real-world usage but tolerates more signal degradation.

2. Why is Permanent Link (90m) Stricter?

• The performance margins are tighter to ensure that even after adding patch cords (up to 100m total), the link still passes Channel standards.

• Example (Cat6):

  Parameter	Permanent Link (90m)	Channel (100m)
  Insertion Loss	Lower (stricter)	Higher
  NEXT (Near-End Crosstalk)	Higher dB (stricter)	Lower dB
  Return Loss	Stricter	More lenient

• Fluke Test Modes:

  • Selecting "Permanent Link" applies stricter thresholds.

  • "Channel" mode allows more tolerance for patch cord variations.

3. Practical Implications

• Installation & Certification:

  • Permanent Link (90m) is tested first to verify the installed cabling meets high standards.

  • Channel (100m) is optional, used to validate real-world performance (including patch cords).

• Common Scenario:

  • A link may pass Permanent Link but fail Channel if patch cords are low quality.

4. Conclusion

• Permanent Link (90m) has stricter requirements than Channel (100m).

• Reason: The fixed infrastructure must compensate for potential signal degradation from patch cords.
