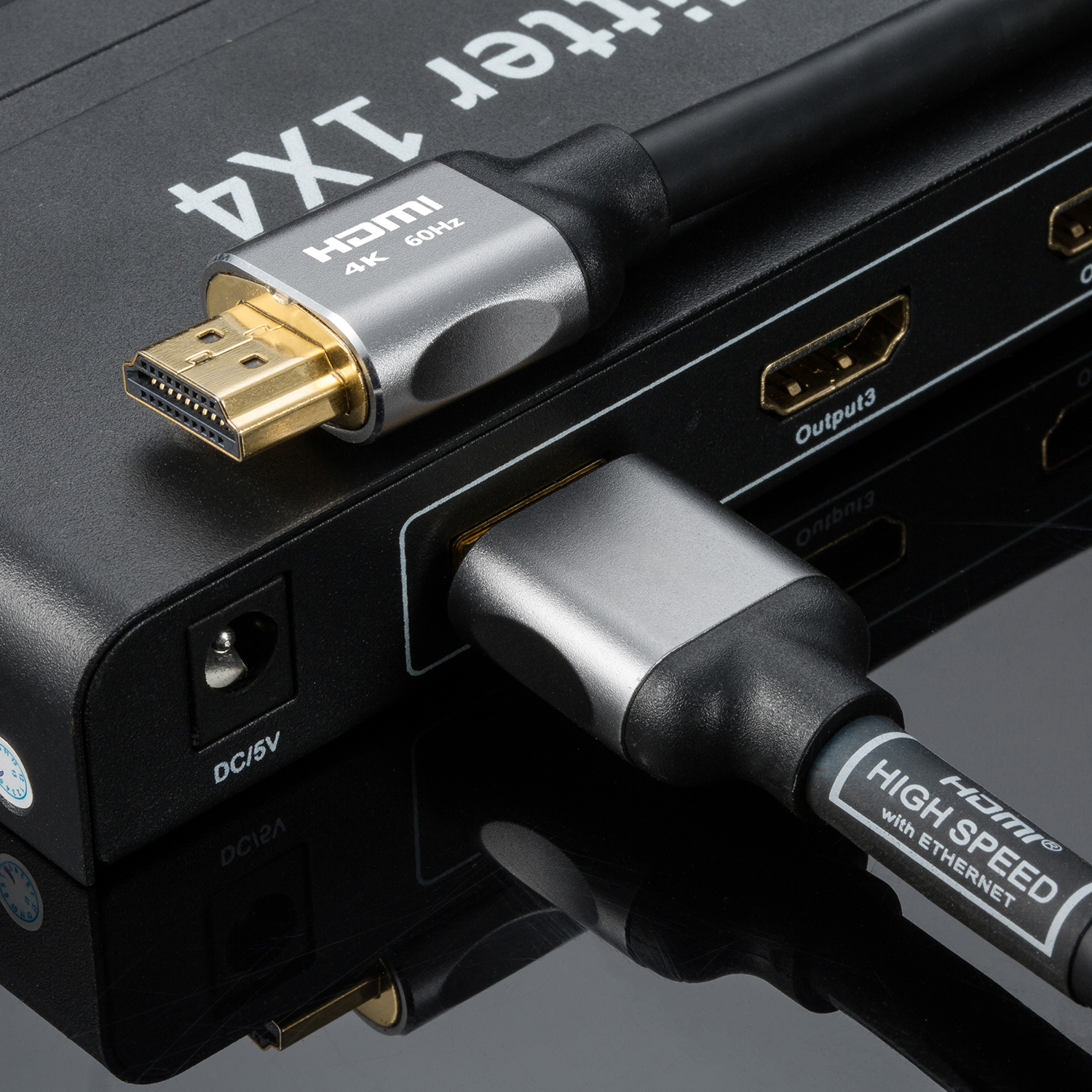

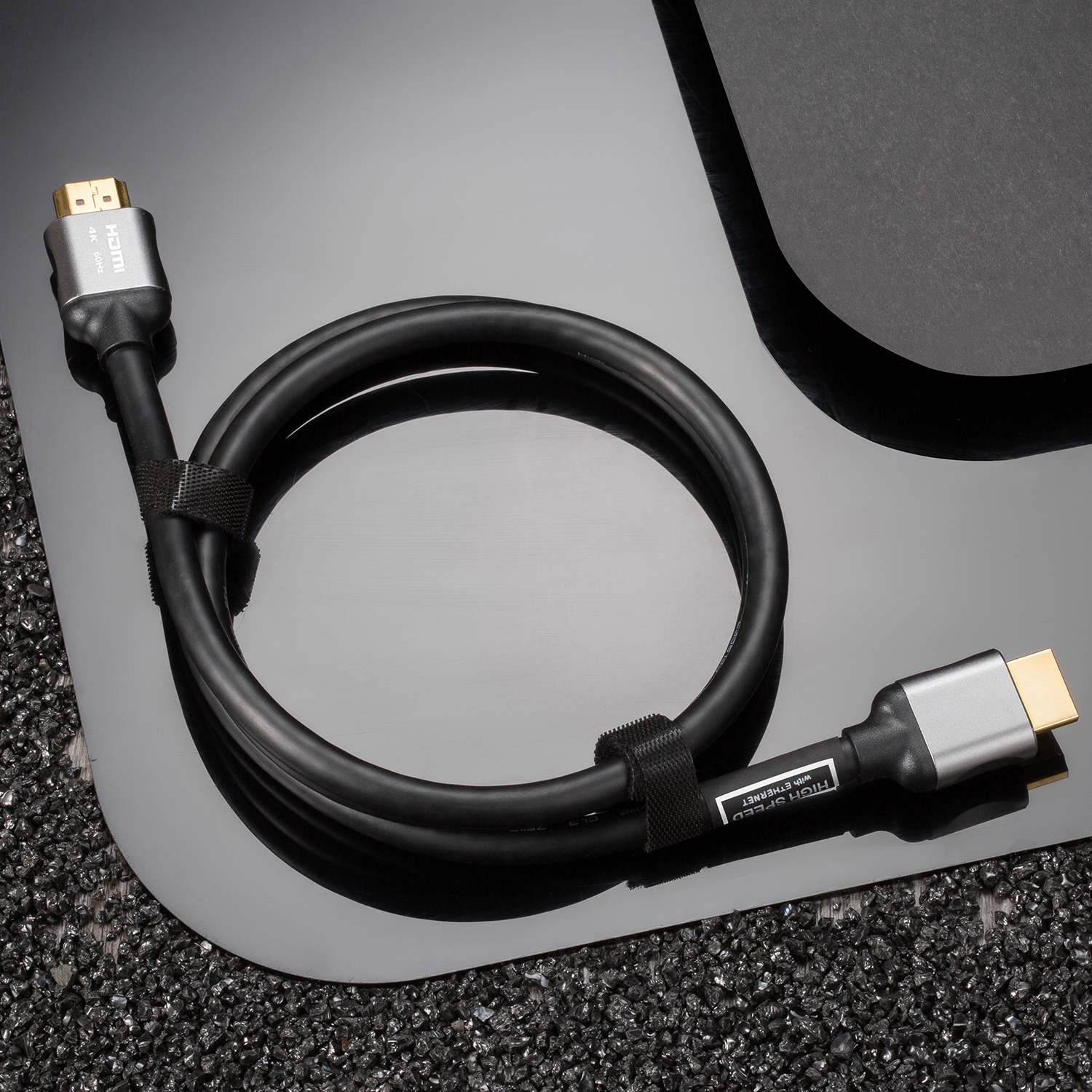

Premium Certified HDMI 2.0 Cable with Aluminum Shell - Ultra HD 4K@60Hz, 18Gbps Bandwidth, High-Density 24K Gold-Plated Plug for Home Theater, Gaming, and Professional AV Systems

Overview:

The Premium Certified HDMI 2.0 Cable with Aluminum Shell is a high-performance cable designed to meet the demands of modern home theaters, gaming setups, and professional AV systems. Certified to support 4K@60Hz resolution with an 18Gbps bandwidth, this cable ensures flawless transmission of ultra-high-definition video and audio. The aluminum shell connector offers superior durability and corrosion resistance, while the high-density 24K gold-plated plug ensures optimal signal transmission and longevity. Whether you're gaming, streaming, or setting up a professional AV system, this HDMI 2.0 cable delivers unmatched performance and reliability.

Key Features:

• Premium Certified HDMI 2.0 Support:Officially certified to support 4K@60Hz resolution with an 18Gbps bandwidth, ensuring seamless transmission of high-quality audio and video signals.

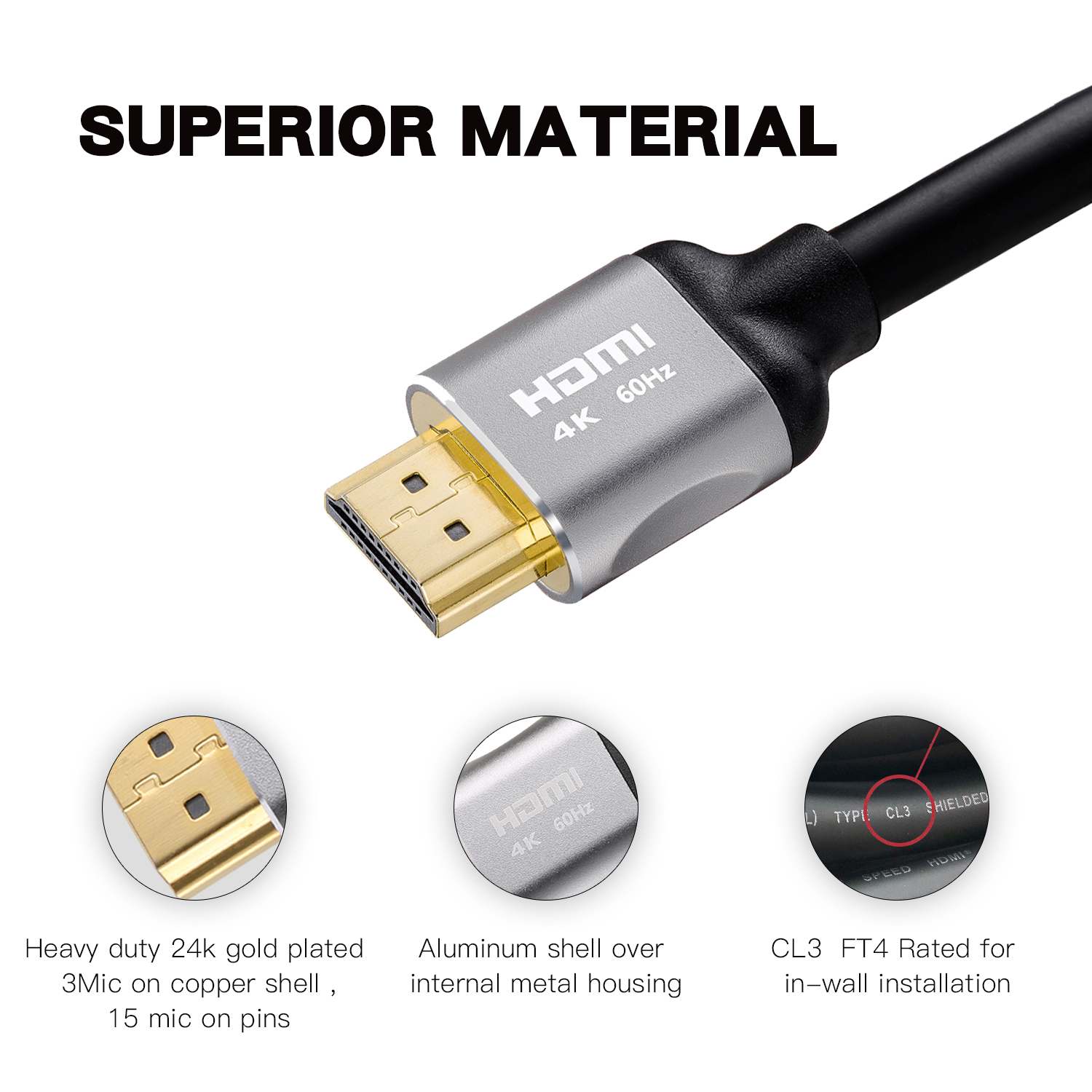

• Aluminum Shell Connector:The aluminum shell connector provides enhanced durability and corrosion resistance, ensuring long-lasting performance even with frequent use.
• High-Density 24K Gold-Plated Plug:The 24K gold-plated plug ，(3µ on shell, 15µ on pins).ensures optimal signal transmission and corrosion resistance, providing the highest quality audio and video performance.

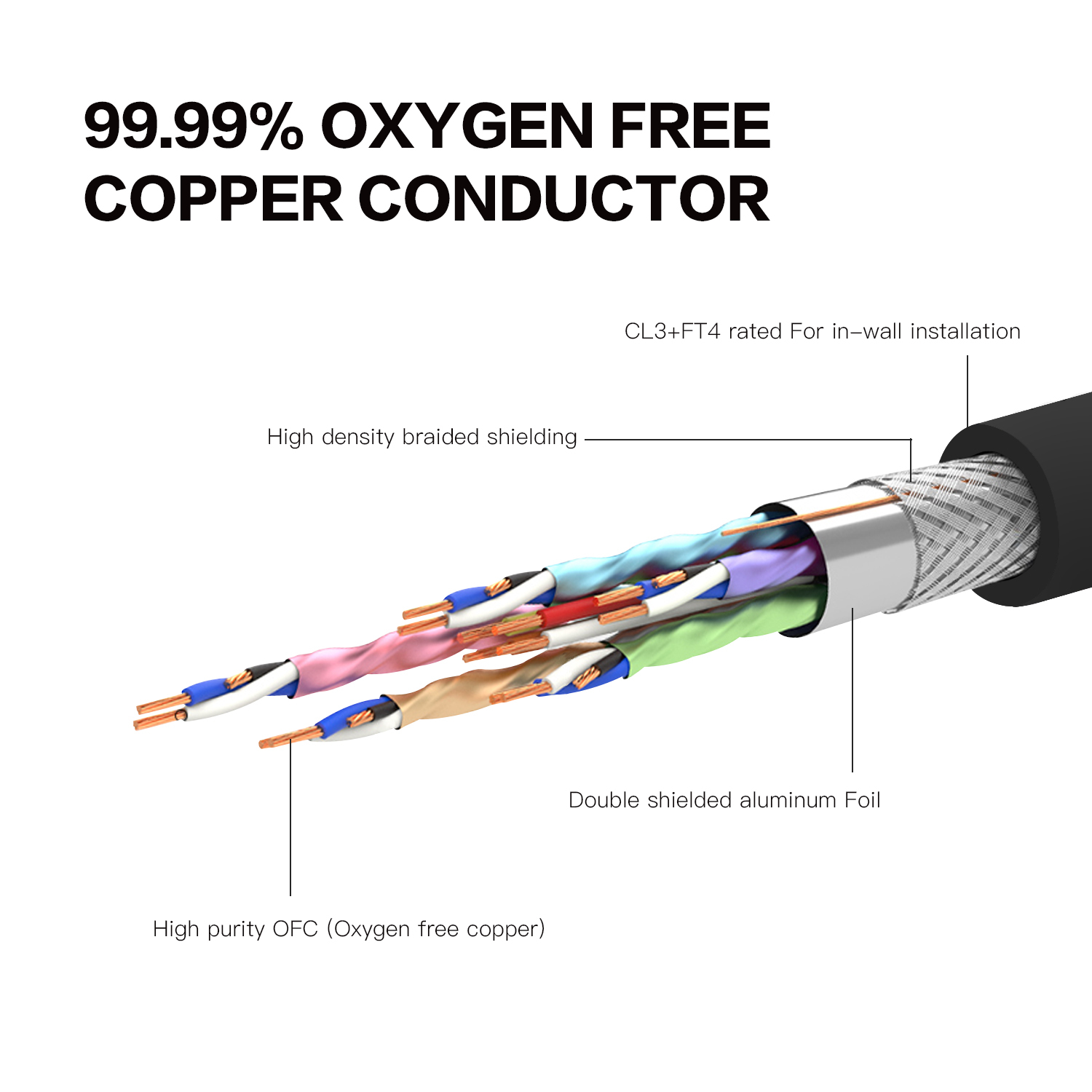

• OFC Conductor:The Oxygen-Free Copper (OFC) conductor ensures better signal transmission with minimal loss, delivering the highest quality audio and video performance.
• HDR and ARC Support:Supports  (HDR10) for richer colors and deeper contrasts, and Audio Return Channel (ARC) for high-quality audio transmission.

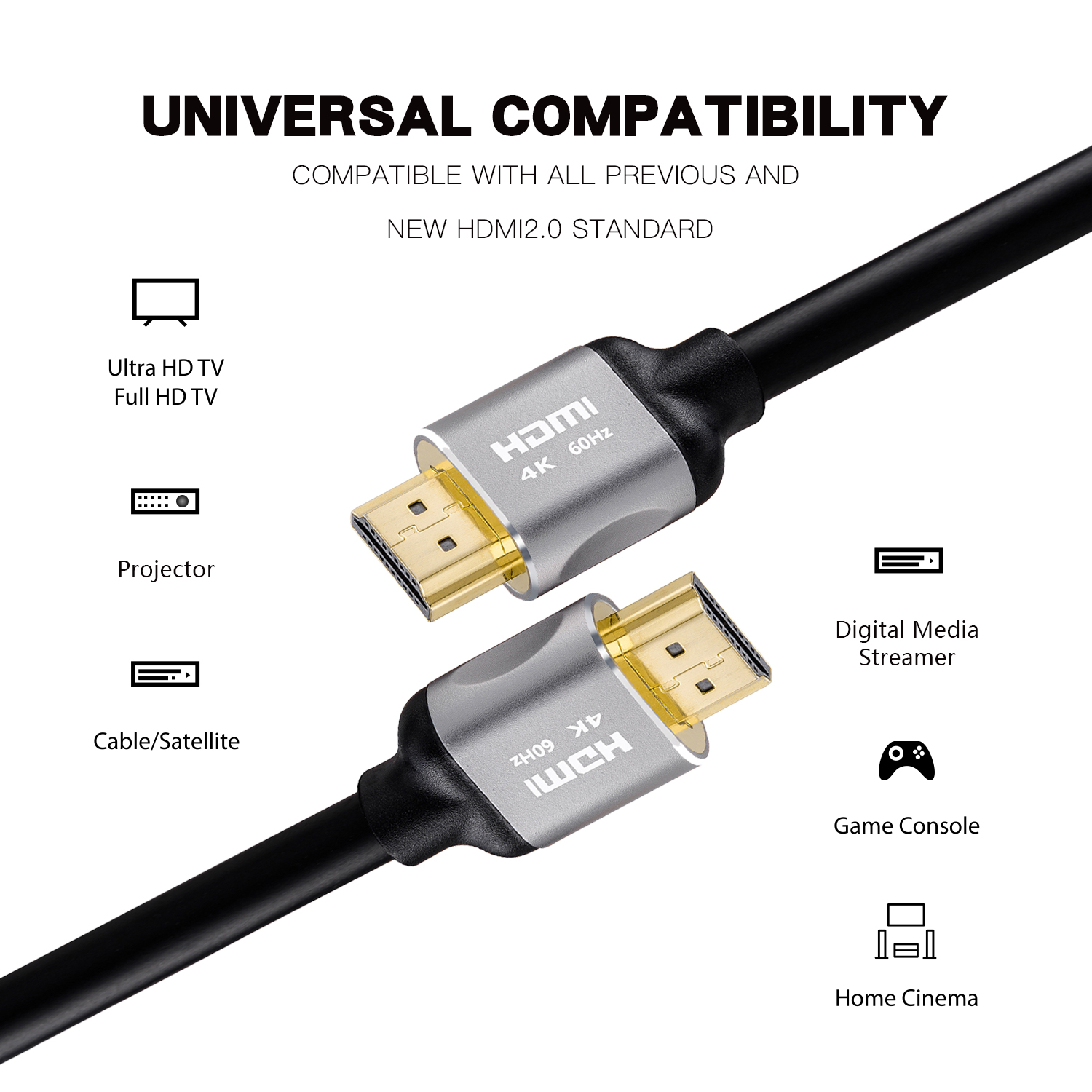

• Backward Compatible:Fully compatible with previous HDMI versions (1.4, etc.), ensuring seamless integration with older devices.

Specifications:

• HDMI version:HDMI 2.0
• Connector Type:HDMI A male to A male (Aluminum Shell)
• Conductor:OFC Conductor
• Cable Length:1m, 2m, 3m, 5m (custom lengths available)
• AWG:1m-2m/30awg, 3m/28awg, 5m/26awg
• Shielding:Triple-layer shielding (braided, foil, and aluminum)
• Cable diameter:6.0mm/30awg, OD7.3mm/28awg, OD8.0mm/26awg
• Bandwidth:18Gbps
• Resolution Support:4K@60Hz, 1080p@120Hz
• HDR Support:Yes HDR10,
• ARC Support:Yes
• Other support:2
• Cable Material:PVC Jacket
• Connector Material:Aluminum Shell
• Plug Material:High-Density 24K Gold-Plated (3µ on shell, 15µ on pins).
• Color:Black (other colors available upon request)
• Operating Temperature:-20°C to +70°C

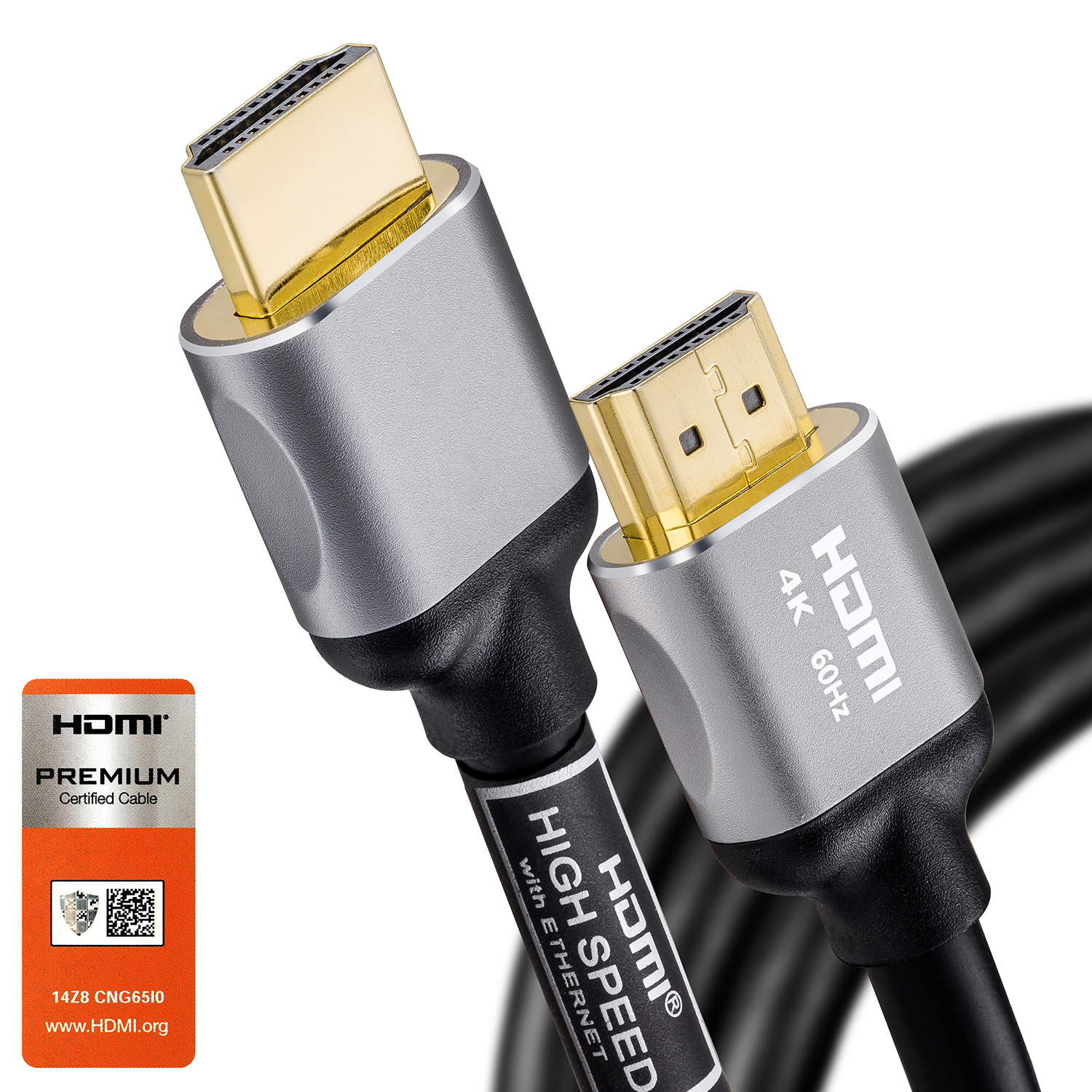

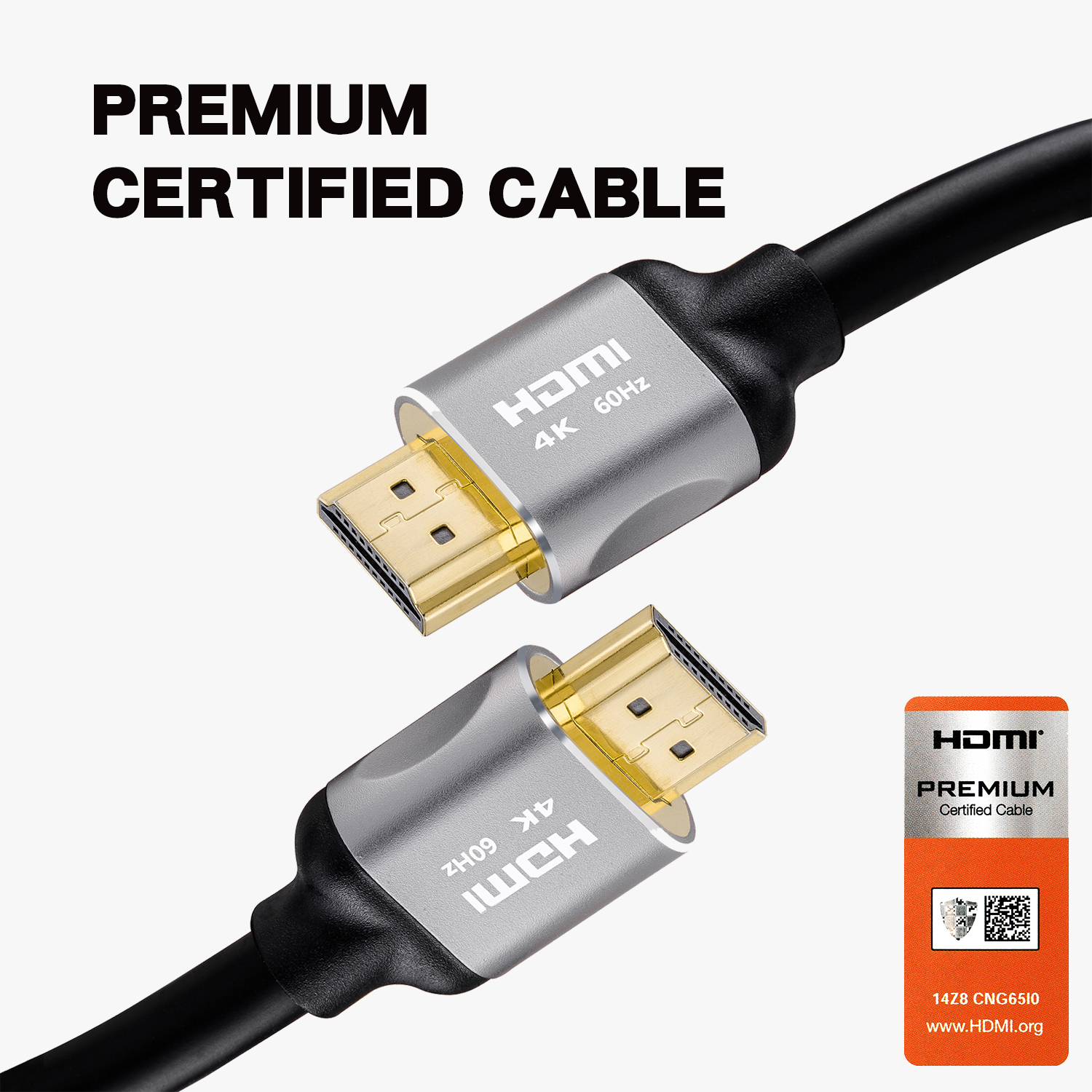

• Certification:Premium HDMI 2.0 Certified

Applications:

• Home Theater Systems:Perfect for connecting 4K TVs, soundbars, and AV receivers for an immersive cinematic experience.
• Gaming Consoles:Ideal for gaming consoles like PlayStation 4 and Xbox One, delivering high refresh rates and low latency.
• Professional AV Setups:Suitable for high-end AV systems in conference rooms, studios, and live events.
• PC and Laptop Connectivity:Connect your PC or laptop to 4K monitors or projectors for ultra-high-definition displays.

1. What is the difference between HDMI 2.0 and HDMI 2.1?
Answer:

• HDMI 2.0 supports up to 18 Gbps bandwidth, 4K@60Hz, and basic HDR.

• HDMI 2.1 supports 48 Gbps, enabling 8K@60Hz, 4K@120Hz, Dynamic HDR, VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and eARC (Enhanced Audio Return Channel).

2. Do HDMI 2.0 cables support HDR?
Answer:

• Yes, HDMI 2.0 supports basic HDR (HDR10). For Dynamic HDR (Dolby Vision, HDR10+), HDMI 2.1 is needed.

3. Can HDMI 2.0 cables carry Dolby Atmos audio?
Answer:

• Yes, but only via compressed formats (e.g., Dolby Digital Plus over ARC). Lossless Atmos requires HDMI 2.1/eARC.

4. Is HDMI 2.0 suitable for gaming?
Answer:

• Yes, HDMI 2.0 supports 4K@60Hz gaming with HDR. However, it lacks HDMI 2.1 features like 4K@120Hz or VRR (Variable Refresh Rate).

5. Does HDMI 2.0 support 10-bit color and 3D?
Answer:

• 10-bit color: Yes, HDMI 2.0 supports 10-bit depth (1.07 billion colors) for HDR.

• 3D: Yes, it supports 3D formats (e.g., 1080p@60Hz per eye).

6. Do your cables have certifications? What are the certified lengths?
Answer:

• Yes, our cables are certified. Certified lengths: 1m, 2m, 3m, and 5m.

7. What conductor materials are used in your HDMI cables?
Answer:
We use different conductor materials depending on the cable type:

• Standard HDMI & Active HDMI: Solid bare copper (for cost-effectiveness and stable performance).

• Ultra Slim HDMI & Fiber Optic HDMI 2.0: Stranded tinned copper (for better flexibility, corrosion resistance, and durability).

• Budget-friendly options (upon request): CCS (Copper-Clad Steel) conductors (reduces cost but may slightly impact signal quality over long distances).

8. What is the difference between passive HDMI 2.0 cables and active HDMI 2.0 cables?
Answer:

• Passive Cables: Use pure copper, limited to short distances (≤5m for 4K@60Hz 4:4:4).

• Active Cables: Include signal-boosting chips, extending range to 10–15m for 4K@60Hz 4:4:4.

9. What's the difference between 1μm and 3μm gold plating?
Answer:

• 1μm (Standard): Cost-effective, ideal for normal use (home/office).

• 3μm (Premium): Enhanced durability, better for harsh environments/frequent use.

10. What is the difference between 4K@60Hz 4:4:4 and 4K@60Hz 4:2:0? Which one is "true" 4K?
Answer:

• 4K@60Hz 4:4:4:

  • Full chroma sampling (uncompressed color data).

  • Delivers maximum clarity, sharp text, and no color subsampling.

  • Requires higher bandwidth (18 Gbps for HDMI 2.0).

  • "True" 4K for professional applications (graphic design, gaming, high-end video editing).

• 4K@60Hz 4:2:0:

  • Compressed chroma sampling (reduced color resolution).

  • Slightly softer text/edges but still displays 4K resolution.

  • Uses less bandwidth (suitable for streaming, TVs, and general video playback).

  • Not "true" 4K for critical visual work but acceptable for most consumers.

11. What is the maximum recommended length for HDMI 2.0 cables?
Answer:

• CCS & Non-Certified cables: Up to 15m (but beyond 3m may have signal loss, only supports 4K60Hz 4:2:0).

• Premium Certified cables: 1-5m (lossless 18Gbps, supports 4K60Hz 4:4:4, true 4K).

• Active HDMI cables: 10-15m (lossless 18Gbps, supports 4K60Hz 4:4:4, true 4K).

• Fiber Optic HDMI: 10-100m (lossless 18Gbps, supports 4K60Hz 4:4:4, true 4K).

12. What is the difference between Ultra Slim HDMI 2.0 and Standard HDMI 2.0?
Answer:

• Ultra Slim HDMI 2.0: Thinner and more flexible (OD <5mm), ideal for tight spaces, uses stranded tinned copper conductors.

• Standard HDMI 2.0: Thicker (OD ~6-8mm), more durable for general use, uses solid bare copper conductors.

13. What is the difference between CCS (Copper-Clad Steel) and BC (Bare Copper) conductors?
Answer:

• CCS: Lower cost, but higher resistance, suitable for short runs (≤3m) or budget applications.

• Bare Copper: Better conductivity, lower signal loss, ideal for longer runs or high-performance needs.

14. Some cheap cables use 14+1 structure vs. 19+1. Is 14+1 non-standard?
Answer:

• 14+1: Non-standard (missing 5 ground wires), may cause EMI issues or instability, especially for 4K.

• 19+1: Standard HDMI structure (19 wires + 1 shield), ensures full bandwidth and stable 4K60Hz performance.

• Recommendation: Always choose 19+1 for reliable HDMI 2.0 performance.

15. Are HDMI 2.0 cables directional?
Answer:

• Standard HDMI 2.0 copper cables: Not directional.

• Active/Fiber Optic HDMI 2.0 cables: Directional (labeled "Source" and "Display").

16. What types of HDMI 2.0 connectors are available?
Answer:

• Type A (Standard): 19-pin, most common for TVs/monitors.

• Type C (Mini): Smaller, for cameras/tablets.

• Type D (Micro): Smallest, for mobile devices.

• Type E (Automotive): For vehicles (rare).Locking style ,

17. What are the outer jacket materials for HDMI 2.0 cables?
Answer:

• PVC: Standard, flexible.

• CL3 PVC: Fire-resistant for in-wall installation (recommended for >5m runs).

• Nylon sleeve: Durable, tangle-resistant.

• Cotton mesh: Premium feel, flexible.
