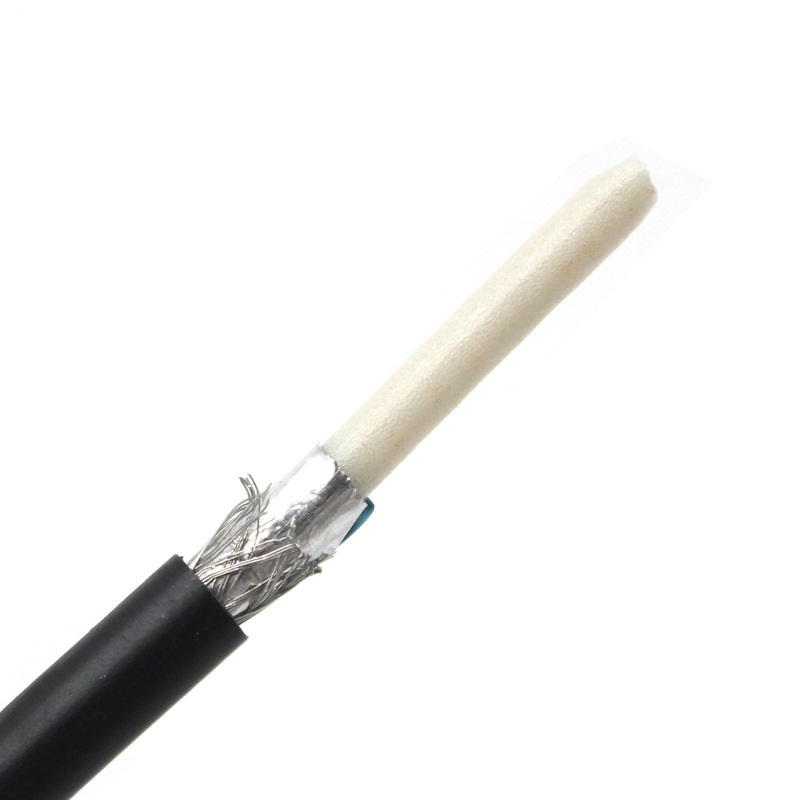

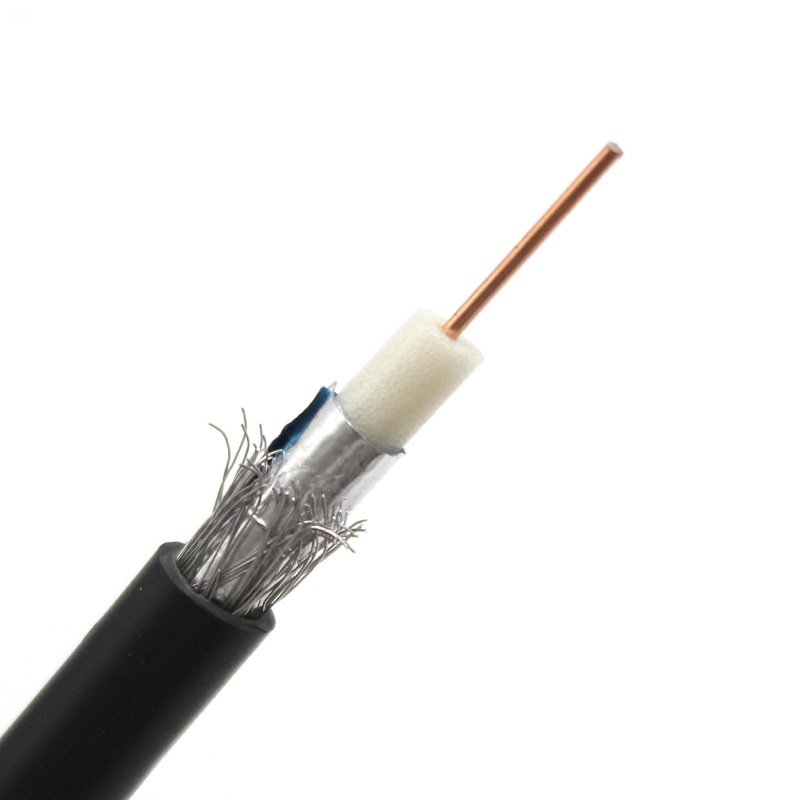

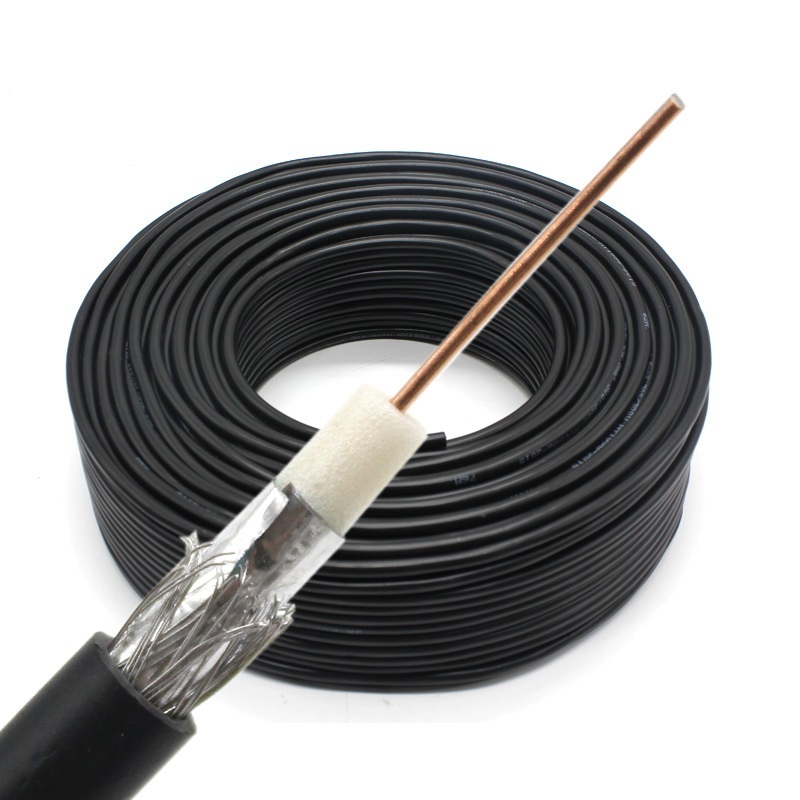

RG59 20AWG Coaxial Cable, Double Shielded, 75 OHM, Black, Spool - High-Performance Cable for CCTV, Satellite, and Broadband Applications

Overview:

The RG59 20AWG Coaxial Cable, Double Shielded, 75 OHM, Black, Spool is a high-performance coaxial cable designed for a wide range of applications, including CCTV, satellite TV, and broadband internet. Featuring a 20 AWG Solid Copper Clad Steel (CCS) Conductor, this cable ensures reliable signal transmission with minimal loss, making it ideal for high-frequency applications. The double shield design, which includes one aluminum foil and 60% braiding, provides excellent protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring clear and reliable signal transmission. The premium RG59 75 OHM coax construction makes it suitable for both residential and commercial installations. Whether you're setting up a security system or a professional broadcast setup, this RG59 coaxial cable delivers unmatched performance and reliability.

Key Features:

• 20 AWG Solid Copper Clad Steel (CCS) Conductor:Ensures reliable signal transmission with minimal loss, making it ideal for high-frequency applications.
• Double Shield Design:Features one aluminum foil and 60% braiding for enhanced protection against electromagnetic interference (EMI) and radio frequency interference (RFI).
• Premium RG59 75 OHM Coax:Ideal for high-frequency signal transmission, suitable for CCTV, satellite, and broadband applications.
• Durable PVC Jacket:Provides excellent protection against environmental factors, ensuring long-lasting performance in various conditions.
• Black Color:Sleek and professional appearance, suitable for various installations, making it ideal for both residential and commercial use.

Specifications:

• Conductor:20 AWG Solid Copper Clad Steel (CCS) (1/0.8CCS)

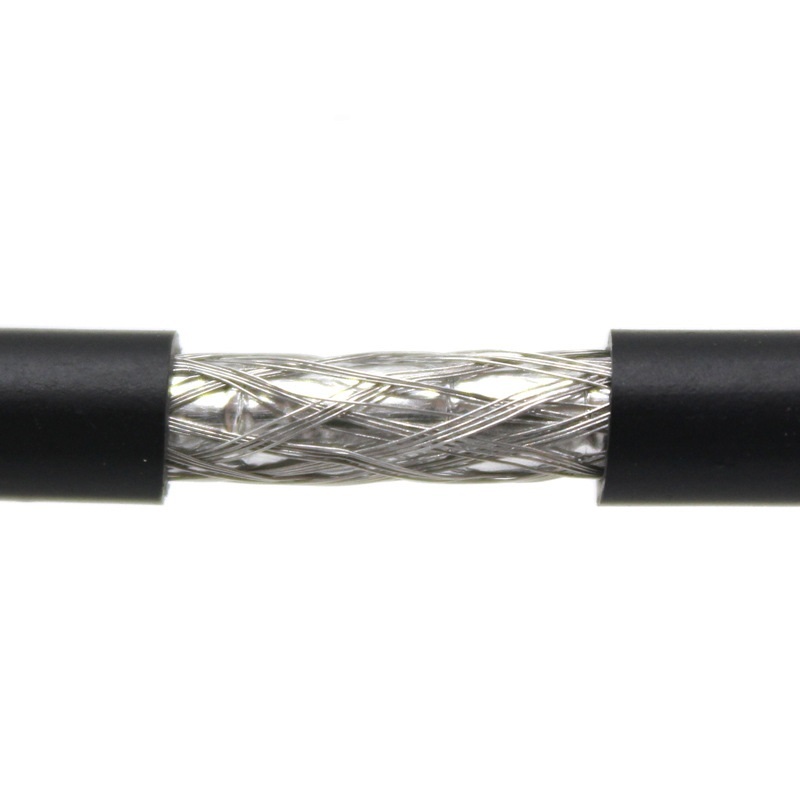

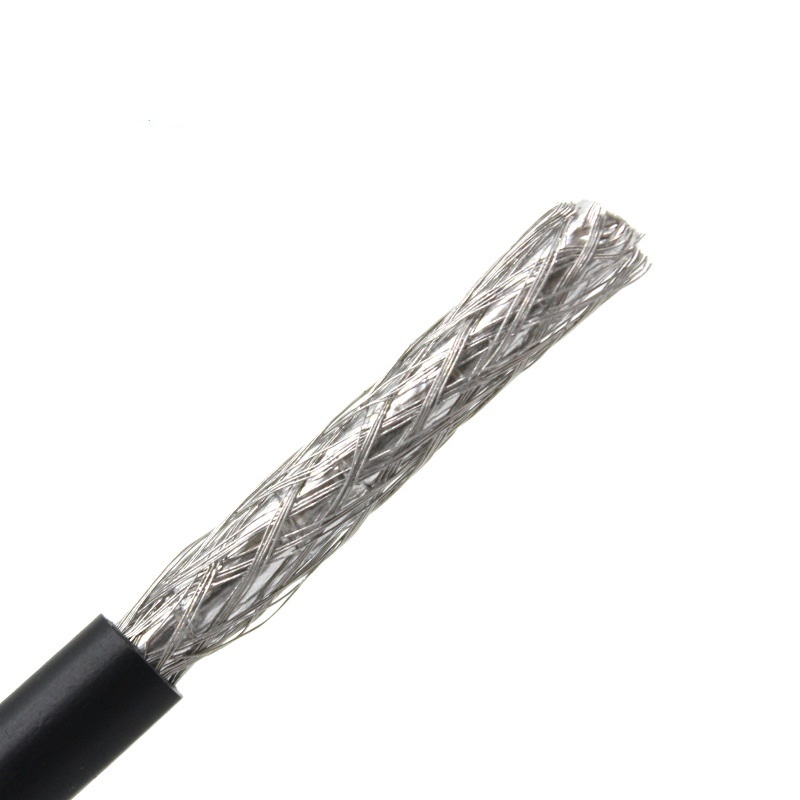

• Shielding:Double Shielded (one aluminum foil and braiding 64/0.12AL)
• Impedance:75 OHM
• Cable Type:RG59 Coaxial Cable
• Jacket Material:PVC
• Color:Black
• Spool Length:50m,100m
• Operating Temperature:-20°C to +70°C
• Outer Diameter (OD):6.1mm

Applications:

• CCTV Systems:Ideal for connecting cameras to DVRs, ensuring clear and reliable video transmission.
• Satellite TV:Suitable for connecting satellite dishes to receivers, providing high-quality video and audio signals.
• Broadband Internet:Perfect for connecting modems to routers or wall outlets, ensuring fast and stable internet connections.
• Home Theater Systems:Suitable for connecting various components in a home theater setup, ensuring high-quality audio and video transmission.
• Professional Broadcast Setups:Ideal for use in professional broadcast environments, ensuring reliable signal transmission for live broadcasts and recordings.

1. What is RG59 coaxial cable typically used for?

Answer:
RG59 is primarily used for analog CCTV systems, short-run video applications (like security cameras), and some basic RF signal transmissions. It's commonly found in older CCTV installations and short-distance video connections.

2. What's the main difference between RG59 and RG6 cables?

Answer:
RG59 has a thinner center conductor (20 AWG vs RG6's 18 AWG) and less shielding, making it suitable for shorter distances and lower frequencies. RG6 offers better signal quality for longer runs and higher frequencies.

3. What is the maximum frequency rating for RG59 cable?

Answer:
Standard RG59 is rated for frequencies up to 1 GHz, making it suitable for analog video and basic RF applications but not ideal for modern high-bandwidth digital signals.

4. How far can RG59 cable run without signal loss?

Answer:
For optimal performance:

• Analog video (CCTV): ≤ 75m (246 ft)

• Composite video: ≤ 30m (98 ft)
  Beyond these distances, signal amplifiers may be needed.

5. What types of shielding does RG59 typically have?

Answer:
Most RG59 cables feature:

• Single shield: 1 aluminum foil + 1 braid (64%-95% coverage)

• Dual shield: 1 foil + 2 braids for better interference protection

6. Is RG59 suitable for outdoor installation?

Answer:
Only with proper outdoor-rated versions that have:

• UV-resistant jacket

• Flooded dielectric (moisture protection)

• Direct burial options available (with additional protection)

7. What connectors work with RG59 cable?

Answer:
Common connectors include:

• BNC (most common for CCTV)

• F-type (with adapters)

• RCA (for consumer video)
  Ensure connectors match RG59's smaller diameter (vs RG6).

8. Why choose RG59 over RG6 for CCTV systems?

Answer:
RG59 may be preferred when:

• Existing infrastructure uses RG59

• Short cable runs (<30m) are needed

• Cost is a primary concern

• System uses analog cameras (not IP cameras)

9. What is the difference between BC conductor and CCS conductor for RG59 Cable?

Answer:
For RG59 cables:

• BC (Bare Copper) offers better conductivity (lower signal loss) and flexibility but costs more

• CCS (Copper-Clad Steel) has higher tensile strength for long pulls but increased resistance
  For CCTV applications, BC is preferred for better signal quality, while CCS may be used for cost-sensitive projects.

10. How can I identify quality RG59 cable?

Answer:
Look for:

• Pure copper center conductor (not CCS for best performance)

• Thick, uniform dielectric

• High shield coverage (≥95% braid)

• Clear impedance marking (75Ω)

• Reputable manufacturer certifications

How to Choose the Right RG6/RG59 Cable for Your Project?

RG6 and RG59 coaxial cables may appear similar, but their internal construction significantly impacts performance and cost. Below are the key factors that determine pricing and quality:

Chinese suppliers generally have similar profit margins. The price differences mainly come from raw materials and specifications, so please compare prices based on the same specifications.

1. Which Cable Type Do You Need: RG6 or RG59?

• RG59: Thinner (20AWG center conductor), suitable for short-run CCTV/SD video (under 150ft)
• RG6: Thicker (18AWG center conductor), better for long-run HD video/satellite (300ft+)

🟡 Recommendation:
Cost Ranking: RG59 < RG6
Market Preference: RG6 dominates modern installations (85% market share) due to HD/4K requirements, while RG59 remains for legacy CCTV systems.

2. What Center Conductor Material is Best?

• Copper-Clad Steel (CCS): Budget option, higher resistance (60% conductivity vs pure copper)
• Solid Copper: Better signal integrity, essential for long runs/HD

🟡 Recommendation:
Cost Ranking: CCS < Solid Copper
Market Preference: Our cables are primarily built with CCS (Copper-Clad Steel) conductors, offering a cost-effective and durable solution.

3. What Shielding Configuration Do You Require?

• Dual Shield (foil+braid): Standard for commercial
• Quad Shield (2 foil+2 braid, ): Critical for dense EMI environments

🟡 Recommendation:
Cost Ranking:  Dual shielding < Quad
Market Preference: Dual shield covers 70% of installations; quad used in data centers/industrial.

4. What Shielding Coverage Do You Need?

• 48/0.12ALML: 85% coverage - Basic EMI protection
• 64/0.12ALML: 90% coverage - Standard for residential
• 96/0.12ALML: 95% coverage - Commercial grade
• 112/0.12ALML: 97% coverage - Professional installations
• 144/0.12ALML: 99% coverage - Maximum EMI protection

🟡 Recommendation:
Cost Ranking: 48/0.12 < 64/0.12 < 96/0.12 < 112/0.12 < 144/0.12
Market Preference: 96/0.12ALML (95% coverage) satisfies most commercial applications.

5. Which Dielectric Material is Appropriate?

• PE (Solid Polyethylene): Standard dielectric
• Foamed PE: Lower dielectric constant (≈1.5) for reduced signal loss

🟡 Recommendation:
Cost Ranking: PE < Foamed PE
Market Preference: Foamed PE is preferred for runs over 200ft due to 30% lower attenuation.

Final Step: Get Your Custom Solution

To receive the perfect RG6/RG59 Coaxial cable recommendation:

1. Specify your conductor, AWG, shielding and connector preferences, OR

2. Provide your target budget for optimized suggestions.

Contact us today for professional audio video cable solutions!

1. What is your MOQ (Minimum Order Quantity)?

A: Standard MOQ is 5000m /per model .if 100m/spool ,it is 50 spool ,we accept smaller trial orde for new buyers

2. What is the lead time for bulk orders?

A: 25-30 days after payment confirmation (depending on order size and customization).

3. Do you offer free samples?

A: Free samples are available for bulk-order buyers, but shipping costs are charged.

4. What are your payment terms?

A: T/T (30% deposit, 70% before shipment).

5. What is your packaging option?

A: Custom packaging (Polybag, blister, retail box, eco-friendly) is available.

6. Which shipping methods do you support?

A: By sea (FCL/LCL), air freight, or express (DHL/FedEx/UPS) for urgent orders.

7. Do you provide warranty?

A: Yes, we provide replacement for defective products.

8. Can you ship to my country?

A: We ship globally and handle customs documentation (INCOTERMS: FOB, CIF, or EXW).

9. Do you provide OEM/ODM services?

A: Yes, we offer custom branding, packaging, and cable specifications (length, connectors, etc.) for bulk orders.

10. How can I request a quote?

A: Email us with your specifications (length, quantity, packaging, etc.) for a detailed quotation.

Ready to discuss your order? Contact us with your requirements for a tailored solution!
