HDFO2001
Overview:

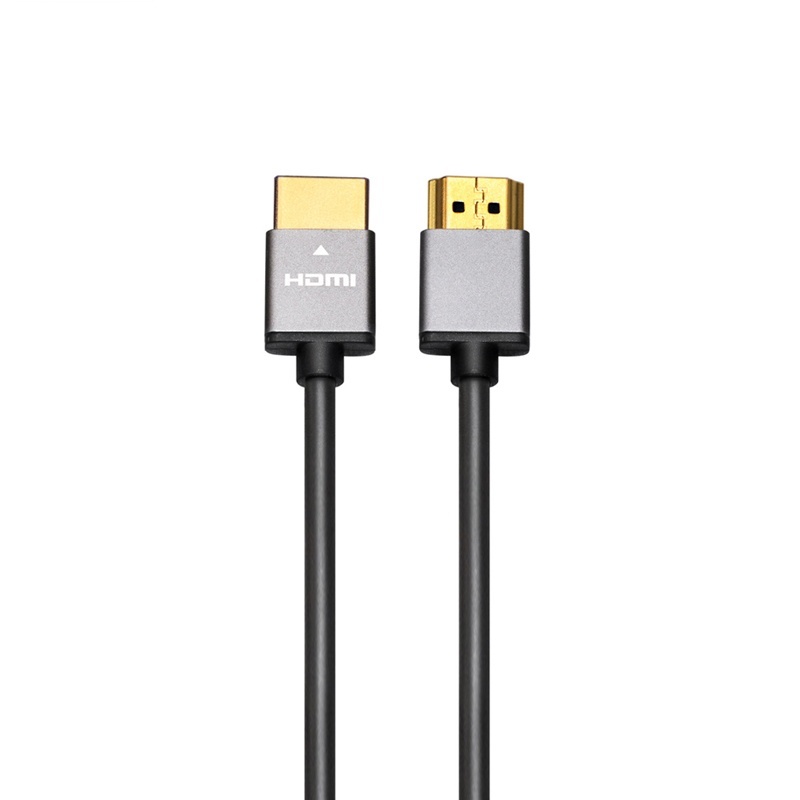

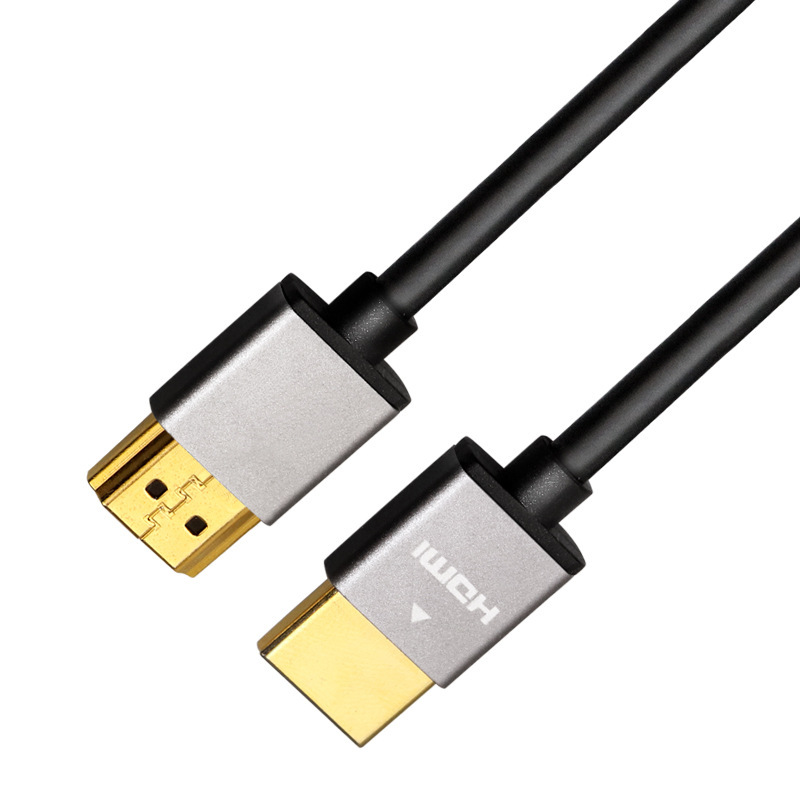

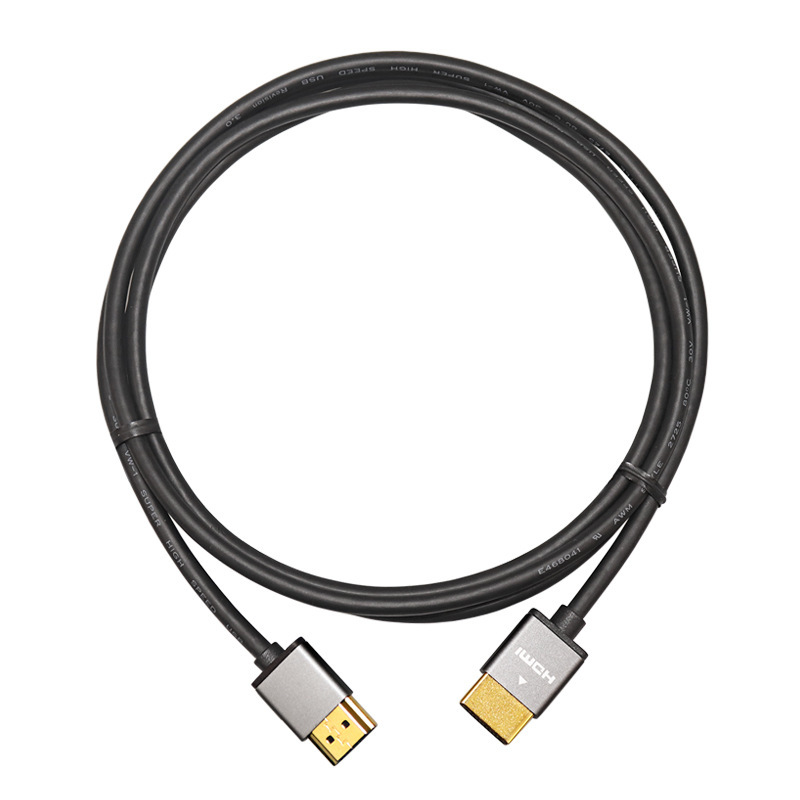

The Ultra Slim HDMI 2.0 Cable with Aluminum Shell is designed for users who demand both performance and durability. Certified to support 4K@60Hz resolution with an 18Gbps bandwidth, this cable is perfect for modern home theaters, gaming setups, and professional AV systems. The aluminum shell connectors provide enhanced durability and a premium feel, while the ultra-slim, lightweight design makes it easy to handle and transport. Whether you're connecting a 4K TV, gaming console, or high-end AV equipment, this HDMI 2.0 cable ensures flawless transmission of high-definition video and audio, all while being exceptionally easy to use and store.
Key Features:
Specifications:
Compatibility:
Applications:
What is the Difference with Standard HDMI?
1. What is the difference between Ultra Slim HDMI 2.0 and Standard HDMI 2.0 cables?

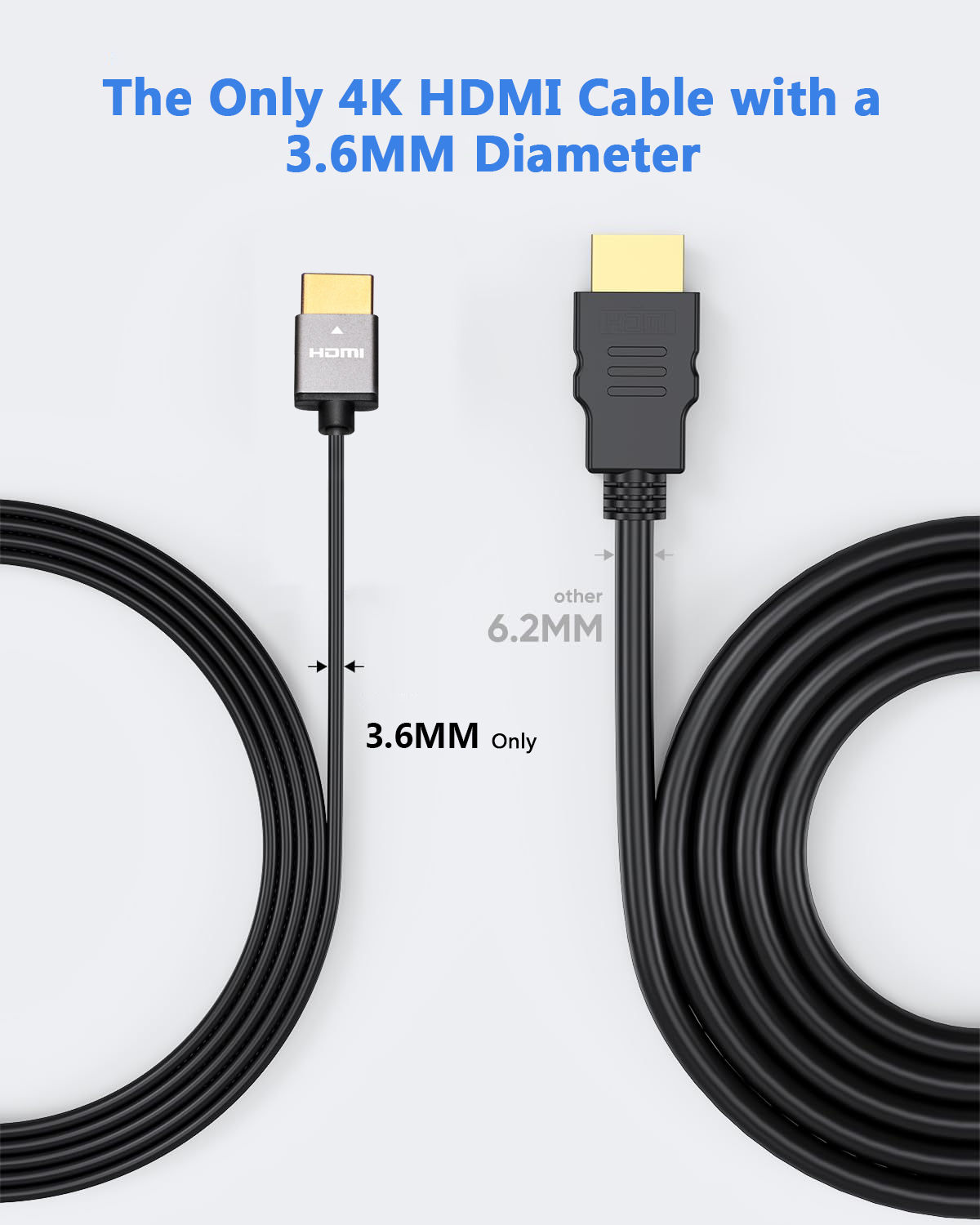

Ultra Slim HDMI 2.0 cables use thinner gauge wires and a more compact, flexible jacket (as slim as 3.6mm), making them ideal for wall-mounted TVs, tight spaces, and portable setups. Standard HDMI 2.0 cables are thicker, less flexible, and may offer slightly better shielding in long-distance installations. If you value minimal cable footprint, the ultra slim high speed HDMI 2.0 cable is a better fit.
2. What is the difference between HDMI A to A, HDMI A to C (Mini HDMI), and HDMI A to D (Micro HDMI)?
HDMI A to A is used for TVs, monitors, and consoles. HDMI A to C (Mini) is typically used in DSLR cameras and tablets. HDMI A to D (Micro) is often found in GoPro cameras or mobile devices. We offer ultra slim HDMI A to A and A to D cables for compact, portable applications.
3. What conductor material is used in your Ultra Slim HDMI 2.0 cables?
Our Ultra Slim HDMI 2.0 cables use tinned copper conductors, providing excellent transmission performance. Combined with the slimmer cable structure, Ultra Slim HDMI cables are more difficult to manufacture, which is why they are generally more expensive than standard HDMI 2.0.
4. Are Ultra Slim HDMI 2.0 cables compatible with gaming consoles like PS4, Xbox One, or Nintendo Switch?
Yes, they are fully compatible with major consoles that support 4K@60Hz, delivering stable video and audio for a smooth gaming experience.
5. Can I use Ultra Slim HDMI 2.0 cables with streaming devices like Roku, Fire Stick, or Apple TV?
Absolutely. These cables are ideal for compact setups and support HDCP 2.2, Dolby Vision, and HDR10, ensuring crystal-clear streaming quality.
6. Are Ultra Slim HDMI 2.0 cables backward compatible with older HDMI versions?
Yes. HDMI 2.0 is backward compatible with HDMI 1.4, 1.3, and 1.2 devices, making it suitable for Full HD TVs and legacy HDMI equipment.
7. What resolution and refresh rate can Ultra Slim HDMI 2.0 cables support?
They support up to 4K@60Hz (3840×2160), 18Gbps bandwidth, HDR10, 3D video, and 4:4:4 chroma subsampling.
8. What is the maximum cable length before signal degradation?
1–2 meters use 34AWG bare copper and support full 4K@60Hz 4:4:4. But 3 meters can only support 4K@60Hz 4:2:0 due to signal attenuation.
9. What is the difference between 4K@60Hz 4:4:4 and 4K@60Hz 4:2:0?
4:4:4 chroma subsampling delivers uncompressed color data, providing maximum image sharpness—ideal for PC monitors or text-heavy displays.
4:2:0 compresses color information, which reduces bandwidth and image quality but is acceptable for video playback and casual viewing. Cables with full 18Gbps bandwidth are required for 4:4:4.

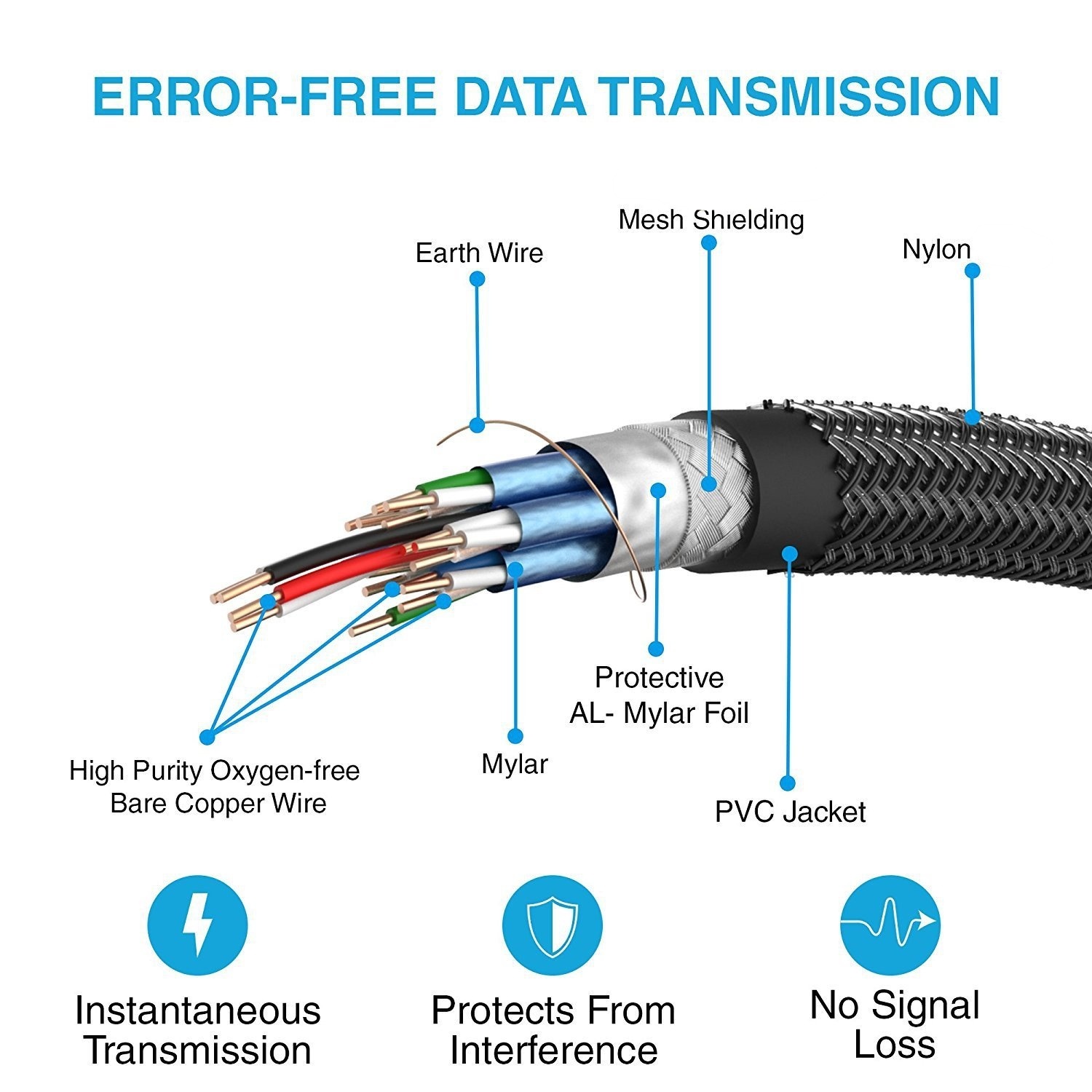

10. Are Ultra Slim HDMI 2.0 cables EMI shielded?
Yes. Our cables feature multi-layer shielding that protects against electromagnetic interference, ensuring stable performance in environments with nearby power cables or wireless devices.
11. What makes an HDMI cable “Ultra Slim”?
It features a reduced outer diameter (typically 3.6mm to 4.5mm), flexible insulation, and lighter internal conductors. This makes it perfect for cable management behind flat-screen TVs, in tight AV cabinets, or portable gear.
12. Can I bend Ultra Slim HDMI cables during installation?
Yes, they are designed to be flexible and easy to route. However, we recommend maintaining a minimum bend radius of 30mm to avoid signal degradation or internal wire damage.
13. Do you offer certified Ultra Slim HDMI 2.0 cables?
Currently, our Ultra Slim HDMI 2.0 cables are not certified. However, we do offer certified Standard HDMI 2.0 cables in 1m, 2m, 3m, and 5m lengths.
If you need certified ultra slim performance, we offer Ultra Slim HDMI 2.1 certified cables in 0.5m, 1m, 1.5m, and 2m lengths.
How to Choose Your Right HDMI 2.0 Cable?
HDMI 2.0 cables may look similar on the outside, but internal materials and specifications make a big difference in performance, certification, and price. Chinese factories typically work on same margins—the real cost variation comes from raw materials and specification.
It is influenced by these 8 aspects: Please compare the price based on same spec .
1. Do You Need Non-Standard 14+1 or Standard 19+1 Structure?
• 14+1 Non-Standard: Reduced 5 core wires, only suitable for very short lengths. May cause compatibility issues with some devices. Some cheap cables on the market use this structure.
• 19+1 Standard: Full HDMI 2.0 compliance, recommended for all lengths and professional use.
🟡 Recommendation:
• Cost Ranking: 14+1 < 19+1
• Market Preference: 19+1 is the most common choice for reliable performance. 14+1 is only considered for very cost-sensitive projects where compatibility risk is acceptable.
2. Do You Need EMI Shielding Inside the Plug?
• Ordinary Inner Mold: Basic shielding for general use.
• Copper Foil: Enhanced EMI protection, reduces interference.
• Tinplate: Premium shielding for high-performance environments.
🟡 Recommendation:
• Cost Ranking: Ordinary < Copper Foil < Tinplate
• Market Preference: Ordinary inner mold is standard for most applications. Copper Foil or Tinplate are only specified when required for premium certified cables or special EMI-sensitive environments.
3. What Type of Connector Housing Do You Need?
• Molding: Basic one-piece plastic, cost-effective but limited durability.
• ABS: Stronger plastic with better heat/impact resistance.
• Aluminum Shell: Improves EMI shielding and heat dissipation.
• Zinc Alloy: Premium metal case with superior durability.
🟡 Recommendation:
• Cost Ranking: Molding < ABS < Aluminum < Zinc Alloy
• Market Preference: Molding is the most common and economical choice. Aluminum and Zinc Alloy are reserved for high-end professional applications.
4. Which Plug Type Best Suits Your Needs?
• Standard HDMI A to A: Works with all standard HDMI ports.
• Snug-Fit A to A: Tighter grip for stable connection. Available for selected models only.
🟡 Recommendation:
• Cost Ranking: Standard < Snug-Fit
• Market Preference: Standard connectors are widely used, while Snug-Fit adoption is growing in commercial installations where secure connections are critical.
5. Do You Have a Special Request for Gold Plating?
• Standard Gold (0.5–1μm): Basic protection for daily use.
• 3μm Gold: Thicker layer for stronger corrosion resistance. Optional and rarely requested.
🟡 Recommendation:
• Cost Ranking: Standard < 3μm
• Market Preference: Standard gold plating satisfies requirements for majority of applications.
6. What Conductor Material Do You Prefer?
• CCS (Copper-Clad Steel): Budget-friendly but higher resistance.
• Solid Bare Copper: Stable signal, lower loss.
• Stranded Tinned Copper: Flexible and durable for high-end cables.we use it for Ultra slim hdmi2.0 and Fiber optic hdmi2.0
🟡 Recommendation:
• Cost Ranking: CCS < Solid Copper < Stranded Tinned Copper
• Market Preference: Solid Copper offers best balance for most applications. CCS is cheaper (especially in 14+1 configuration) is the most budget-conscious option.
7. Do You Need Premium Certified or Non-Certified Cables?
• Non-Certified: Only pass 4K TV image test. Lower AWG,supports 4K@60Hz 4:2:0 only beyond 3m – a compressed color format that lowers bandwidth.
• Structure Example:1–3M: 30AWG/ 5–7.5M: 28AWG / 8–10M: 26AWG/ 15M: 24AWG
• Advantage: Lower cost and basic 4K compatibility for TVs and home use.
• Limitation: Not suitable for full-bandwidth content like high-end gaming or professional displays.
• Certified (Pass Simplaylabs 881 Eye patten test):True 4K , High AWG, Uses thicker conductors, ensures full HDMI 2.0 compliance with 18Gbps bandwidth. Supports 4K@60Hz 4:4:4 – uncompressed format with full color fidelity.
• Structure Example:1–3M: 30AWG/ 5M: 26AWG/ 10M: 26AWG + CHIP/ 15M: 24AWG + CHIP
• Advantage: Guarantees full color depth, sharper text, stable signal in demanding applications like gaming monitors, 4K editing setups, or professional AV.
🟡 Recommendation:
• Cost Ranking: Non-Certified < Certified Or (30AWG< 28AWG<26AWG<24AWG)
• Market Preference: Certified cables are mandatory for professional applications. Non-certified are common in consumer markets where cost is primary concern.
8. What Outer Jacket Material Do You Prefer?
• PVC: Basic flexible jacket.
• CL3-Rated PVC: Fire-resistant for in-wall use (Note: required for lengths exceeding 5m when specially requested).
• Nylon Braided: Premium tangle-free surface.
• Cotton Mesh: Soft-touch luxury option.
🟡 Recommendation:
• Cost Ranking: PVC < CL3 PVC < Nylon < Cotton
• Market Preference: PVC is standard for most applications. CL3 is specified for in-wall installations over 5m. Nylon braided and cotton mesh is for high end .
Why Choose Us
Certified for All Lengths (1M–5M): Few HDMI factories in China are certified for multiple cable lengths.
Official Supplier to MONSTER CABLE: We manufacture 4K and 8K HDMI cables for MONSTER CABLE.
Final Step
To help us recommend the best HDMI 2.0 cable:
Specify your preferences for each feature, OR
Share your target price for optimized configuration.
We're ready to provide a customized solution tailored to your needs.
PREMIUM HDMI CABLE CERTIFICATION PROGRAM
Premium High Speed HDMI® cables are tested to ensure quality for feature-rich 4K/Ultra-HD content
The Premium HDMI® Cable Certification ProgramTM encompasses additional and enhanced cable testing as well as an authentication and verification program for High Speed HDMI Cables.Cables are tested to ensure they support the full 18Gbps bandwidth with an EMI test to ensure cables minimize interference with wireless signals.
The program is designed to give end users confidence when purchasing new HDMI® cables for their 4K/UltraHD products that may include features such as 4K@60Hz, BT.2020 and HDR. Participating HDMI Adopters can promote their HDMI ATC-tested High Speed HDMI Cables as Premium High Speed HDMI Cables or Premium High Speed HDMI Cables with Ethernet using a unique anti-counterfeiting authentication label on their products.
These special cables are available with both HDMI Type-A and Type-D Connectors and the specification also supports HDMI Converter Cables including HDMI Active Optical Cables.
Trust the cable with the label
Certification assurance makes sure cables are authentic and certified throughout the supply chain. Only authorized HDMI adopters who participate in this special program can order labels via the HDMI Adopter secure extranet.
New HDMI Cable Certification Labels
The HDMI Cable Certification Program supporting Premium High Speed HDMI Cables is changing to a new generation (Gen 2) label. The original Gen 1 labels in the market will continue to be supported with the proprietary scanning app for the immediate future. Please note that consumers will be seeing two versions of the labels and they use different scanning apps. Please download the informational brochure for complete details here
Shopping for the HDMI Cables Just Got Easier
Shopping for HDMI® Cables can be confusing. Resellers may use a variety of marketing terms and may not use the official HDMI Cable name designations, and many websites may recommend cables only based on receiving affiliate payments. And worst of all – some cables are counterfeits.
The Verification Banners are an optional add-on to the existing HDMI Cable Certification Program. The website banners enable consumers to verify the certification status of cables while shopping on manufacturer and reseller websites. The Verification Banners can be either clicked or scanned, displaying the brand name, model number and length - the same as when scanning the physical Certification Labels affixed to the cable packaging.
This HDMI cable certification program is administered by the agent for the HDMI Specification, HDMI Licensing Administrator, Inc. and:
Participants
Participants in the Premium HDMI Cable Certification Program are HDMI Adopters who have signed up and qualified for the program. These Participants may be represented as brand names in the marketplace or supply manufacturers who go to market with their own brand names. When labels are scanned the results will display the in-the-market brand name that should appear on the package
The Adopted Trademarks Premium HDMI Cable Certification Program, Premium High Speed HDMI Cable, Premium High Speed HDMI Cable with Ethernet, the Premium HDMI Cable label, and the Premium HDMI Cable Logo, are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
HDMI 2.0 Cable Quality Control
Professional Assurance for High-Definition AV Applications
1. Real-World 4K Image Test
2. Real-World PS5 Testing
3. SimplayLabs SL-881 Eye Diagram Testing
Order Quantity and Samples
What is your MOQ (Minimum Order Quantity)?
Standard MOQ is 500 pcs per model, but we accept smaller trial orders for new buyers.
Do you offer free samples?
Free samples are available for bulk-order buyers, but shipping costs are charged.
Order Processing and Lead Time
What is the lead time for bulk orders?
25-30 days after payment confirmation (depending on order size and customization).
How can I request a quote?
Email us with your specifications (length, quantity, packaging, etc.) for a detailed quotation.
Payment Terms
What are your payment terms?
T/T (30% deposit, 70% before shipment).
Packaging and Shipping
What is your packaging option?
Custom packaging (Polybag, blister, retail box, eco-friendly) is available.
Which shipping methods do you support?
By sea (FCL/LCL), air freight, or express (DHL/FedEx/UPS) for urgent orders.
Can you ship to my country?
We ship globally and handle customs documentation (INCOTERMS: FOB, CIF, or EXW).
Warranty and Services
Do you provide warranty?
Yes, we provide replacement for defective products.
Do you provide OEM/ODM services?
Yes, we offer custom branding, packaging, and cable specifications (length, connectors, etc.) for bulk orders.
