Entry level 1/4" TS to XLR Female Microphone Cable - 26AWG OFC & Double Shielding for Studio & Stage Applications

Overview:

The Professional 1/4" TS to XLR Female Microphone Cable provides a professional-grade solution for connecting instrument-level signals to balanced microphone inputs. Featuring 26AWG oxygen-free copper conductors and comprehensive double shielding, this cable delivers exceptional audio quality while effectively eliminating interference. The combination of a standard 1/4" TS jack and XLR female connector makes it ideal for connecting guitars, keyboards, and other instruments to mixing consoles, audio interfaces, and PA systems. Engineered for both studio and live performance use, this cable maintains signal integrity even in demanding environments.

Key Features:

• Low-Noise Performance:26AWG (17/0.10)OFC conductor minimizes signal degradation
• Double shielding (48/0.10 )OFC :Dual-layer shielding blocks EMI/RFI effectively
• Professional Connectors:Neutrik-style XLR with positive locking
• Strain Relief Design:Reinforced connections withstand repeated use
• Tangle-Resistant:Flexible jacket maintains coil memory

Specifications:

• Conductor:26AWG (17/0.10) Oxygen-Free Copper

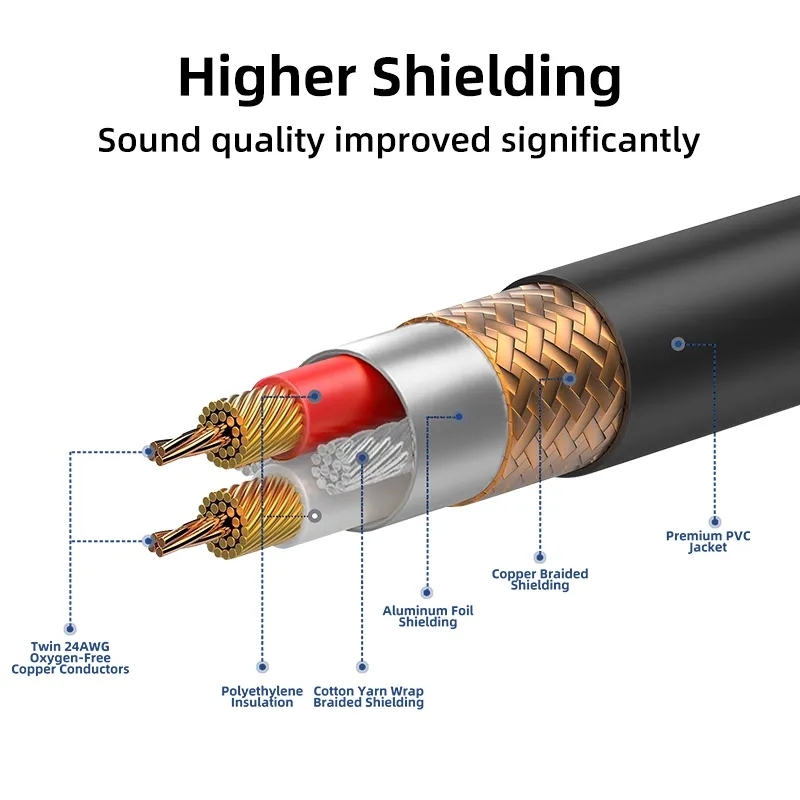

• Shielding:Aluminum Foil + 48/0.10 OFC Braided Copper
• Connectors:1/4" TS Male to XLR Female
• Jacket Material:Oil-Resistant PVC
• Outer Diameter:OD5.8mm
• Length Options:1m, 2m, 3m, 5m10m
• Temperature Range:-20°C to +70°C
• Impedance:75Ω

Applications:

• Connecting instruments to mixer microphone inputs
• Keyboard to PA system integration
• Stage monitoring systems
• Studio patch bay connections
• Broadcast audio equipment
• Location recording setups

How to Choose the Right XLR Microphone Cable for Your Project?

XLR microphone cables may look similar, but their internal construction significantly impacts audio quality and durability. Below are the key factors that determine performance and pricing:

1. What Conductor Material Do You Need?

• CCA (Copper-Clad Aluminum): Budget-friendly option with 60% conductivity of pure copper, suitable for temporary installations or budget-conscious projects.
• OFC (Oxygen-Free Copper): Professional-grade 99.95% pure copper, delivering optimal signal transmission for critical audio applications.

🟡 Recommendation:
Cost Ranking: CCA < OFC
Market Preference: OFC is the industry standard for professional audio installations, while CCA is typically used in entry-level equipment.

2. What AWG Size is Appropriate for Your Application?

• 28AWG (7/0.12): Ultra-thin option (0.32mm diameter) for space-constrained installations and patch cables
• 26AWG (12/0.12): Slim and flexible design (0.40mm diameter), ideal for portable equipment
• 24AWG (19/0.12): Balanced choice (0.51mm diameter) for most studio/live applications
• 22AWG (28/0.12): Heavy-duty option (0.64mm diameter) for long cable runs

🟡 Recommendation:
Cost Ranking: 28AWG < 26AWG < 24AWG < 22AWG
Market Preference: 24AWG provides the best balance of performance and flexibility for 80% of professional applications.

3. What Shielding Configuration Do You Require?

• 32/0.10 OFC Spiral: 70% coverage - Maximum flexibility for touring
• 48/0.10 OFC Braid: 85% coverage - Standard studio protection
• 64/0.10 OFC Braid: 90% coverage - Enhanced live sound shielding
• 96/0.10 OFC Braid: 95% coverage - Professional installations
• 112/0.10 OFC Braid: 98% coverage - Broadcast-grade protection

🟡 Recommendation:
Cost Ranking: 32/0.10 < 48/0.10 < 64/0.10 < 96/0.10 < 112/0.10
Market Preference: 64/0.10 OFC braid (90% coverage) satisfies most professional requirements.

4. Which Jacket Material Do You Need?

• PVC: Standard flexible jacket for general use
• Cotton Mesh: Premium aesthetic with added protection

🟡 Recommendation:
Cost Ranking: PVC < Cotton Mesh
Market Preference: PVC is standard for 90% of installations; cotton mesh for high-end retail.

5. What Connector Quality Level Do You Need?

• Nickel-Plated: Standard professional grade
• Gold-Plated: Premium corrosion resistance

🟡 Recommendation:
Cost Ranking: Nickel < Gold
Market Preference: Nickel-plated connectors are specified for 70% of professional installations.

6. Which Connector Shell Material Do You Prefer?

• Aluminum: Lightweight and cost-effective
• Zinc Alloy: Premium durability and shielding

🟡 Recommendation:
Cost Ranking: Aluminum < Zinc Alloy
Market Preference: Zinc alloy is preferred for touring and permanent installations.

7. What XLR Pin Material Do You Require?

• Iron: Standard conductivity
• Copper: Enhanced signal transfer

🟡 Recommendation:
Cost Ranking: Iron < Copper
Market Preference: Copper pins are standard in professional audio cables.

Final Step: Get Your Custom Solution

To receive the best Microphone cable recommendation:

1. Specify your requirements for testing standard, conductor, shielding, and jacket, OR

2. Provide your target budget, and we'll suggest the optimal configuration.

Contact us today for your customized cable solution!

Order Quantity and Samples

1. What is your MOQ (Minimum Order Quantity)?
   Standard MOQ is 500 pcs per model, but we accept smaller trial orders for new buyers.

2. Do you offer free samples?
   Free samples are available for bulk-order buyers, but shipping costs are charged.

Order Processing and Lead Time

2. What is the lead time for bulk orders?
   25-30 days after payment confirmation (depending on order size and customization).

3. How can I request a quote?
   Email us with your specifications (length, quantity, packaging, etc.) for a detailed quotation.

Payment Terms

4. What are your payment terms?
   T/T (30% deposit, 70% before shipment).

Packaging and Shipping

5. What is your packaging option?
   Custom packaging (Polybag, blister, retail box, eco-friendly) is available.

6. Which shipping methods do you support?
   By sea (FCL/LCL), air freight, or express (DHL/FedEx/UPS) for urgent orders.

7. Can you ship to my country?
   We ship globally and handle customs documentation (INCOTERMS: FOB, CIF, or EXW).

Warranty and Services

7. Do you provide warranty?
   Yes, we provide replacement for defective products.

8. Do you provide OEM/ODM services?
   Yes, we offer custom branding, packaging, and cable specifications (length, connectors, etc.) for bulk orders.
